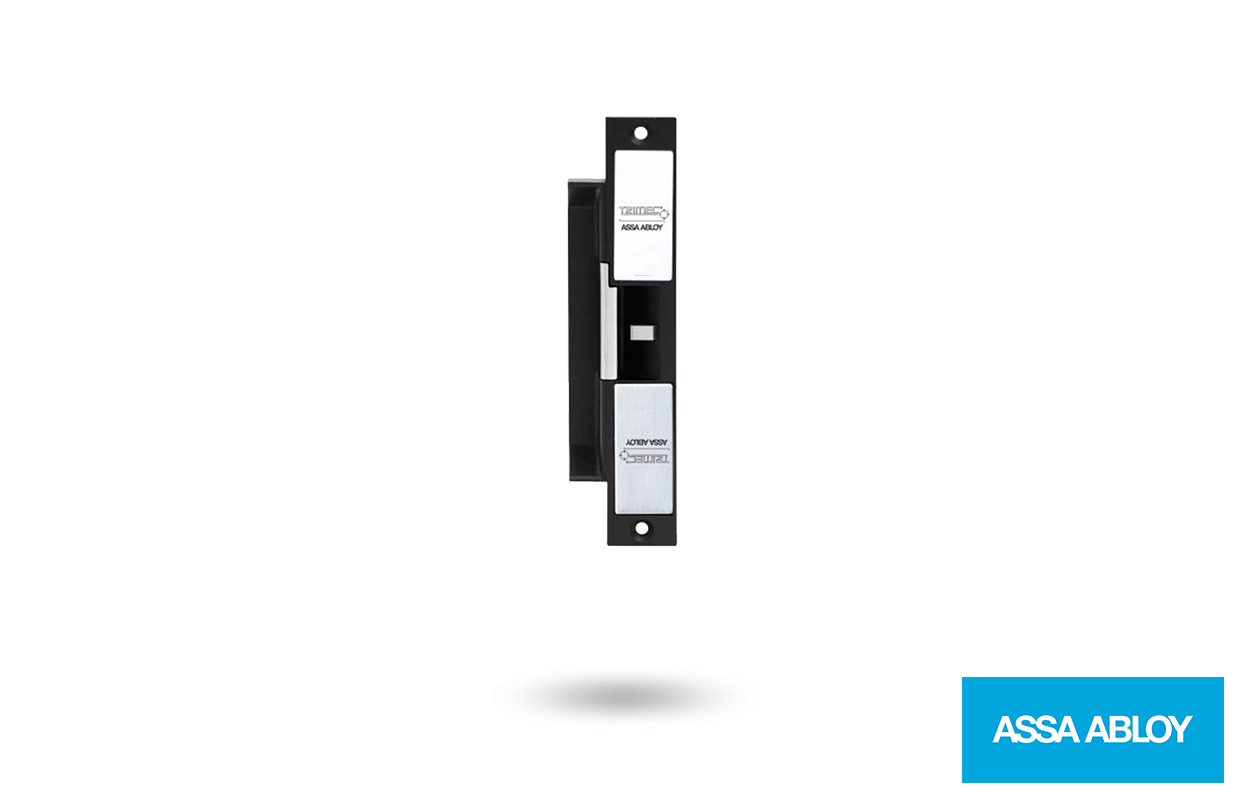

Trimec ES9000 Pre-Loaded Strike

The ES9000 has been designed to suit the harshest commercial environments, and has the unique feature of the ability to operate with up to 25kg of pre-load pressure on the keeper. Pre-load is a common condition that is caused by pulling on a door before it unlocks, the weight of warped or drooping doors, seals on fire doors, or by differential air pressure created when heating and cooling systems are in use.

Standard features include multi-voltage 10 - 30Vdc and field changeable settings from fail-safe to fail-secure. Built to last, this is a premium locking solution that has been tested over 2 million cycles and boasts unique features like no other available on the market today

Applications

• Suitable for high traffic areas and where doors are subjected to side load (pre-load). Fire rated for fire door applications and suits open-in or open-out door installations. The ES9000 can be integrated into various access control systems.

• Operates under pre-load up to 25kg
• Easy field selectable fail safe/fail secure
• Multi voltage 10Vdc to 30Vdc
• 1300kg holding force
• 2.5million cycles endurance rating
• Full monitoring
• Continuously Rated Solenoid
• Latch keeper is significantly quieter in operation
• Includes standard 15.5mm lip
• Mounting tabs as standard
• Non handed - field changeable to required configuration
• Australian designed and made
• Suplied in trade pack

119001-000 CATALOGUE
