Wired Module to Integrate one Third-Party Device

Wired Module to Integrate one Third-Party Device - Transmitter Fibra

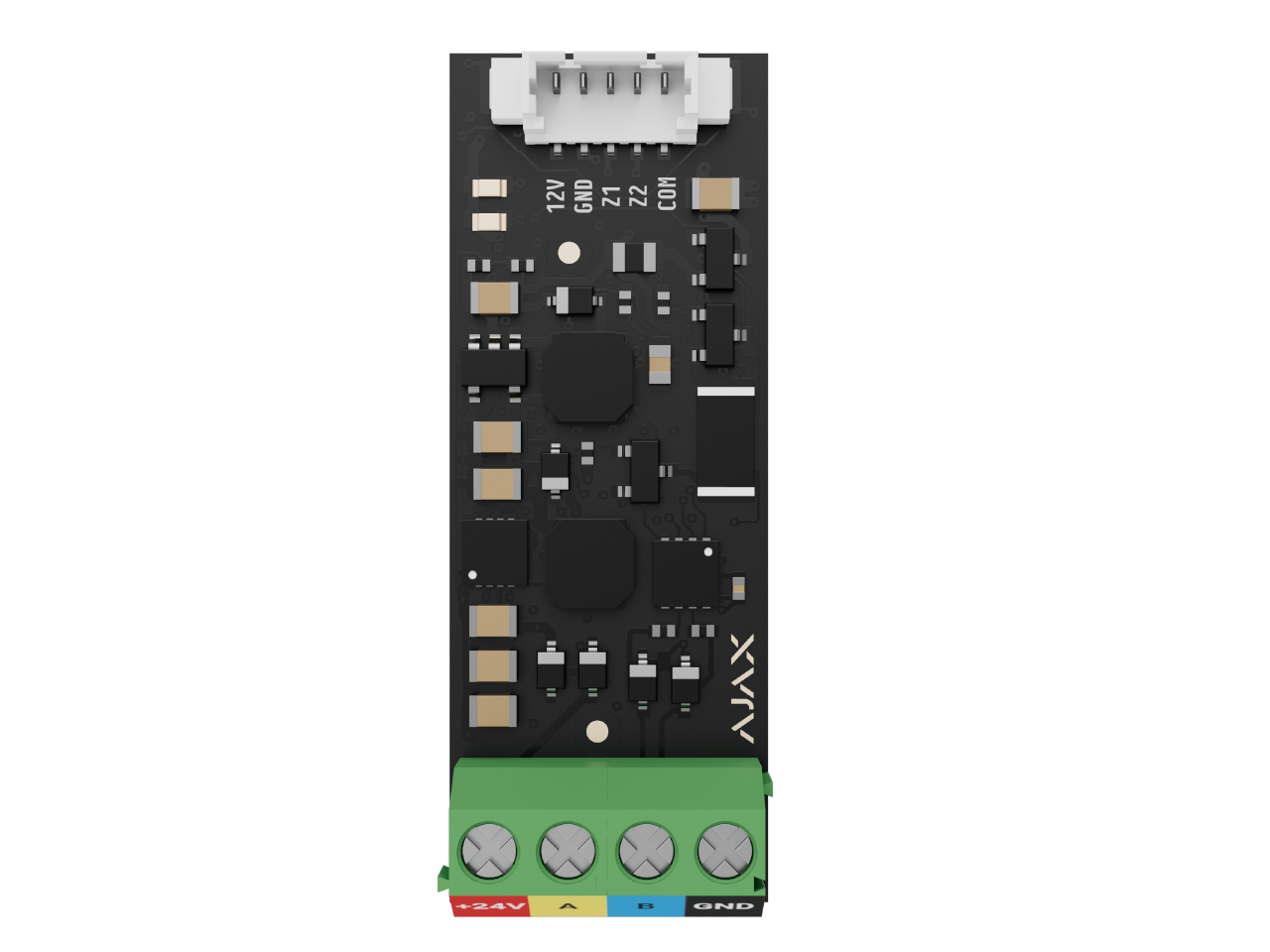

Transmitter Fibra is an integration module for connecting a third-party wired device to an Ajax system. It can be used to connect roller shutters, panic or auxiliary buttons, indoor or outdoor motion detectors, as well as opening, vibration, glass break, fire, gas, leak detectors, or other wired devices.

The integration module supports NC, NO, EOL, 2EOL, 3EOL, or Roller Shutter device connection types and can supply the connected device with 10.5-15 V, up to 50 mA of power.

The module operates in the Ajax system and exchanges data with the hub using the secure Fibra wired communication protocol.

*Note - The integration module is compatible with Hub Hybrid (2G) and Hub Hybrid (4G). Connection to other hubs, radio signal range extenders, ocBridge Plus, and uartBridge are not provided.

• Instant detection of wired device connection loss
• Keyarm feature for integrated third-party device
• Installation inside the device enclosure
• Integration of roller shutter motion detector
• Fast connection to wired devices by measurement of EOL resistors
• Up to 2,000m range of communication with an Ajax hub or a module that extends the Fibra line
• Convenient wire connection due to accessory 5-pin cable
• Remote control and configuration
• Chime 3 for shops, commercial and non-commercial facilities
• Low power consumption
• Informative in-app notification
