Hub Hybrid (4G)

Hub Hybrid (4G)

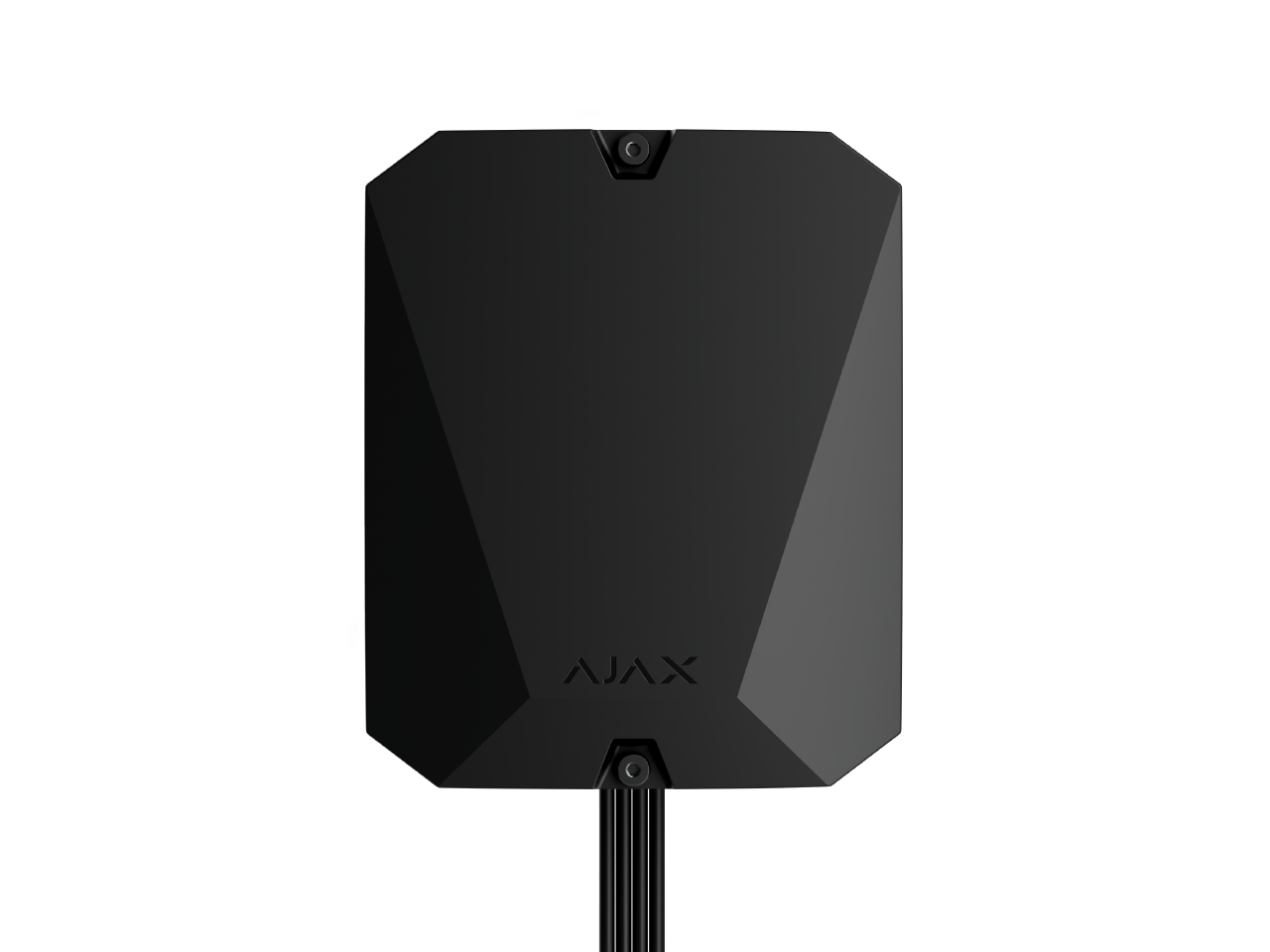

Hub Hybrid is a hybrid control panel of the Ajax security system. Compatible with wired and wireless Ajax devices. Controls the operation of connected devices, and interacts with the user and the security company. They are intended for indoor installation.

Hub Hybrid needs Internet access to connect to the Ajax Cloud service. Available communication channels: Ethernet and two SIM cards.

Dimensions:

196mm x 238mm x 100mm

*Simcards sold separately

** Please note, anyone can purchase this hub but in order to install the Hub Hybrid an installer must have passed the "Superior Product Line" exams in the Ajax Academy portal and contacted techsupport@cleardigital.co.nz to activate the access.

• Video Surveillance - Third-party cameras can be connected to the security system: thanks to the RTSP protocol support, integration with IP cameras and Dahua, Hikvision, Safire, EZVIZ, and Uniview DVRs is implemented.


You can connect up to 25 video surveillance devices to the system.

• Scenarios - Hub Hybrid allows the creation of 32 scenarios and minimises the human factor impact on safety. The hub can manage the security of the entire facility or group according to a schedule; activate the smoke machine if intruders enter the room; de-energize the room and turn on emergency lighting in case of fire; shut off water in the event of a leak; control lighting devices, electric locks, roller shutters, and garage doors — when changing the security mode by pressing a button or by a detector alarm.

• Allow up to 50 users.
• Allow up to 25 Cameras
• Allow up to 9 Security Group
• Allow up to 50 Virtual Rooms

Hub Hybrid (4G) Spec sheet
