Module to Protect Devices on the Fibra Line

LineSplitFibra

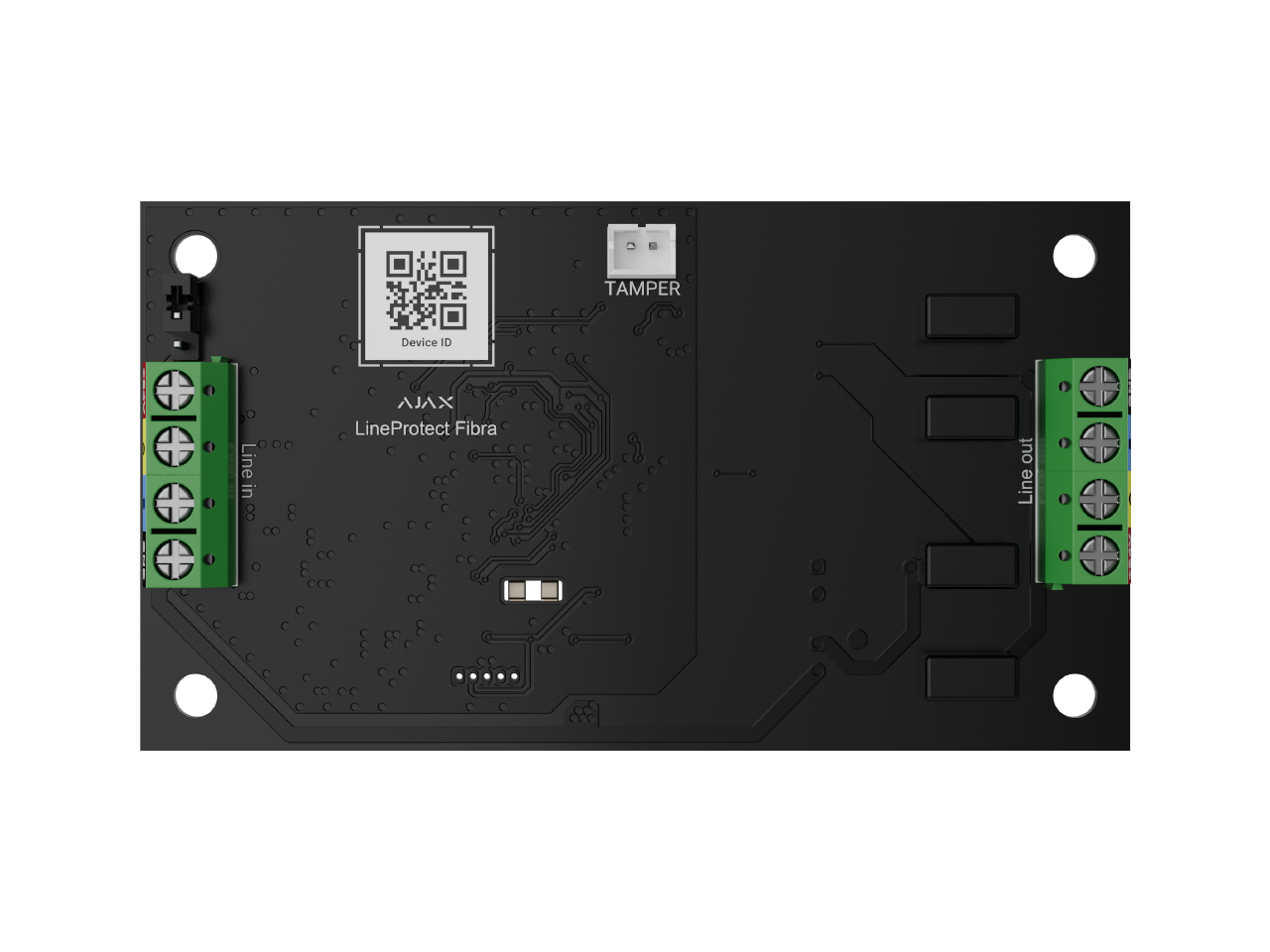

LineProtect Fibra is a module designed to protect devices on the Fibra line from short circuits and sabotage: 110/230 V~ voltage supply to the line, hit with the stun gun.

The module works in an Ajax system and exchanges data with the hub using the secure Fibra wired communication protocol.

*Note - The device is compatible with Hub Hybrid (2G) and Hub Hybrid (4G). Connection to other hubs, radio signal range extenders, ocBridge Plus and uartBridge is not provided.

Dimensions

90 x 50 x 15mm

• Protection from short circuits, & overvoltage.
• Remote control and configuration
• Low power consumption
• Informative in-app notifications
• Up to 2,000m distance of wired communication with an Ajax hub
• Fibra wired communication
• Tamper alarm when mounted into Case
• Up to 2,000m for each LineSplit output

LineProtect Fibra SPEC SHEET
