Wired IR Motion Detector with Photo on Demand

Wired IR Motion Detector with Photo on Demand - MotionCam (PHOD) Fibra

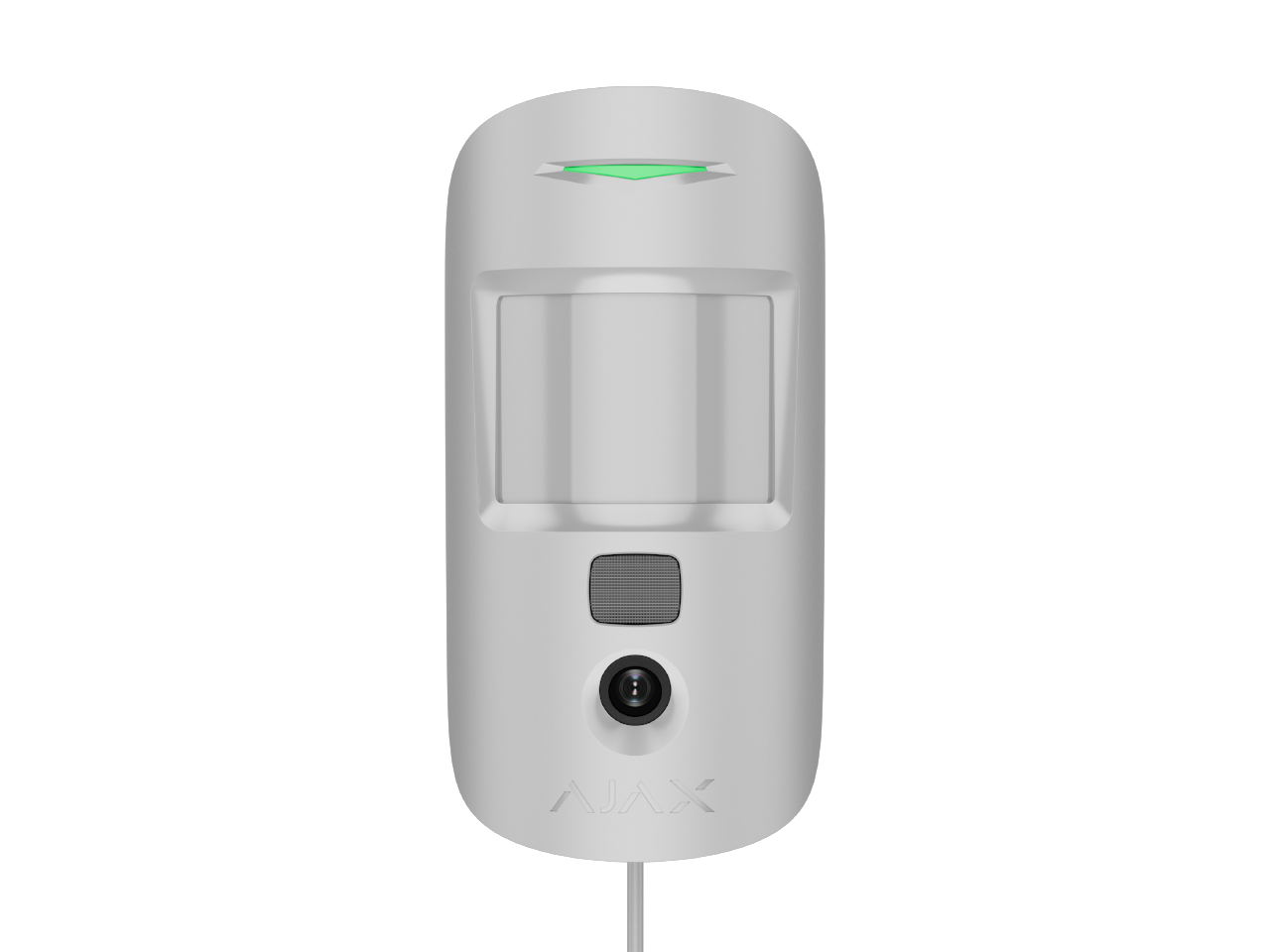

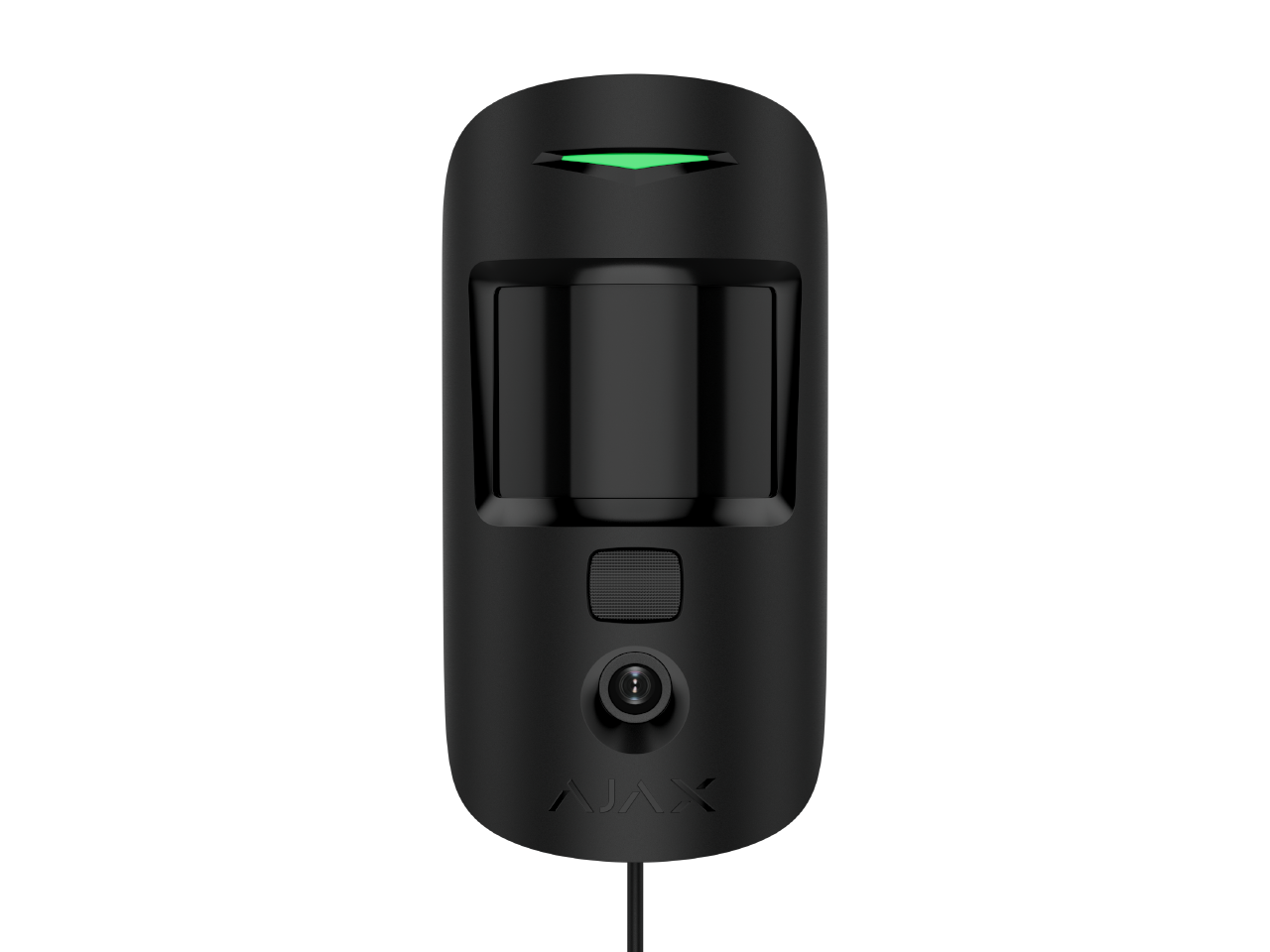

MotionCam (PhOD) Fibra is a wired IR motion detector supporting Photo by Alarm, Photo on Demand, Photo by Scenario, and Photo by Schedule features. The device is designed for indoor use only. Detects movement at a distance of up to 12* meters. Ignores pets when installed and configured correctly.

MotionCam (PhOD) Fibra is part of an Ajax system and exchanges data with the hub using the secure Fibra wired communication protocol. Wired communication can be up to 2,000 meters long when connected using the U/UTP cat.5 twisted pair cable.

*Note - An Ajax hub is required for the detector to operate. MotionCam (PhOD) Fibra is compatible with Hub Hybrid (2G) and Hub Hybrid (4G) on OS Malevich 2.15.2 or higher. Connection to other hubs, radio signal range extenders, ocBridge Plus, and uartBridge are not provided.

Dimensions:

135 x 70 x 66mm

• IR Backlight - Under low-light conditions
• 4 types of Photo Verification -
  • Photo by Alarm
  • Photo on Demand
  • Photo by Scenario
  • Photo by Schedule
• Vertical viewing angle
• Horizontal viewing angle
• Up to 12 m motion detection distance
• Smart detect - Software algorithm to prevent false alarms
• Pet immunity
• Temperature compensation - Effective detection in the head and cold
• Up to 2,000m - range of communication with an Ajax hub
• Fibra wired communication
• Informative in-app notifications
• Remote control and configuration


MotionCam (PhOD) Fibra SPEC SHEET
