Wired Combined Opening, Shock & Tilt Detector with Two Reed Switches and Accelerometer

Wireless Magnetic Opening Detector - DoorProtect

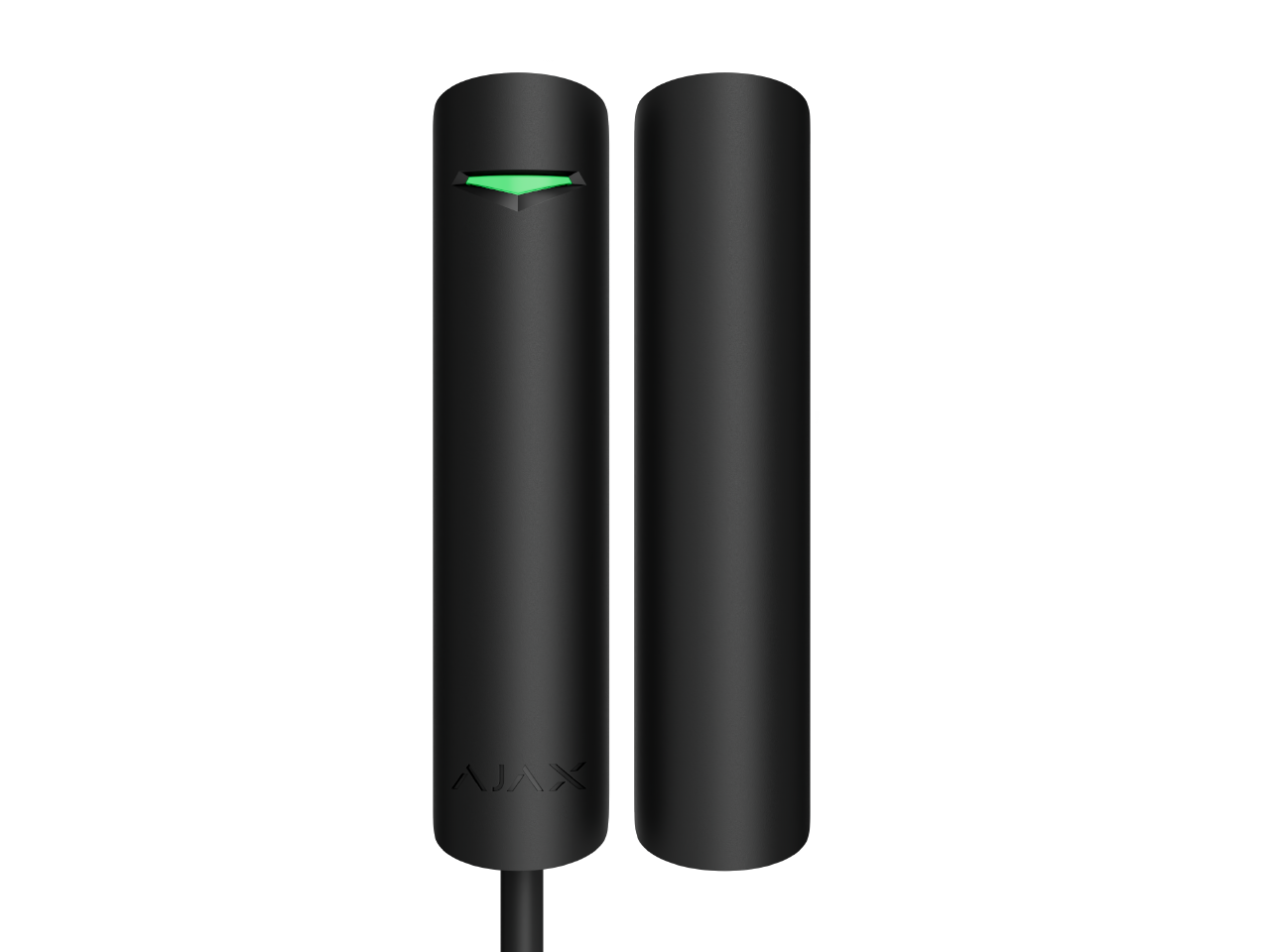

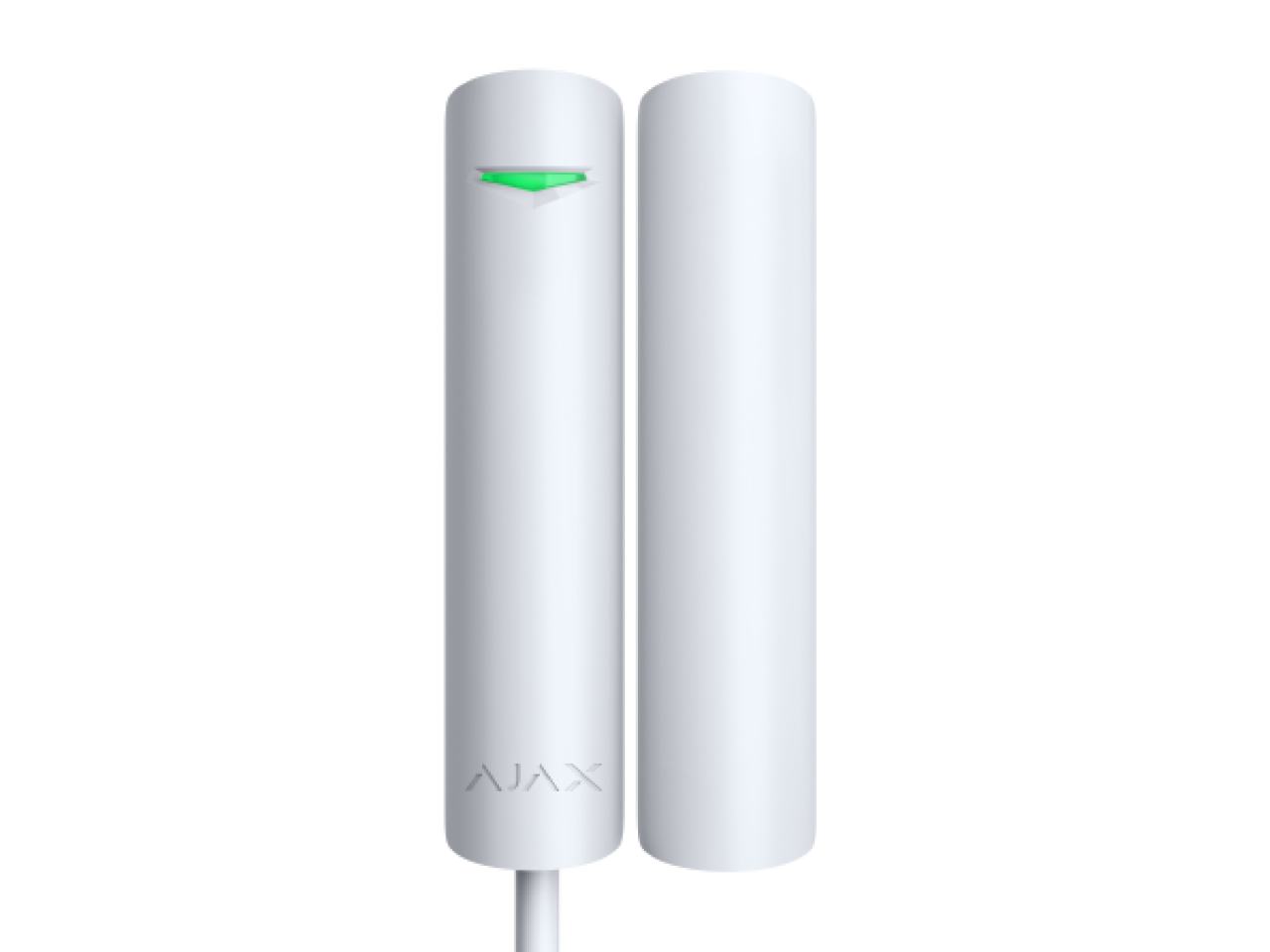

DoorProtect Plus Fibra is a wired opening, shock, and tilt detector. Designed for indoor use. Supports connection of a third-party normally closed detector.

DoorProtect Plus Fibra only works as a part of the Ajax system, communicating with the hub via the secure Fibra protocol. The wired connection range is up to 2,000 meters when connected via twisted pair U/UTP cat.5.

*Note - The detector is compatible with Hub Hybrid (2G) and Hub Hybrid (4G). Connection to other hubs, radio signal range extenders, ocBridge Plus, and uartBridge are not provided. Integration with other security systems is also not provided.

Dimensions:

90.5 x 21 x 18.5 mm

• 2 reed switches
• Shock and tilt detection
• Protection against chattery
• Adjustable sensitivity
• Chime feature
• Communication range with an Ajax or a module2 that extends the Fibra line - up to 2,000m
• Protection against chattering - To prevent false alarms
• More installation options with two magnets included.
• Terminals to connect a third-party NC detector
• Easy wiring - removable device board
• Remote control & configuration
• Informative push notifications
• Fibra wired communication

DoorProtect Plus Fibra SPEC SHEET
