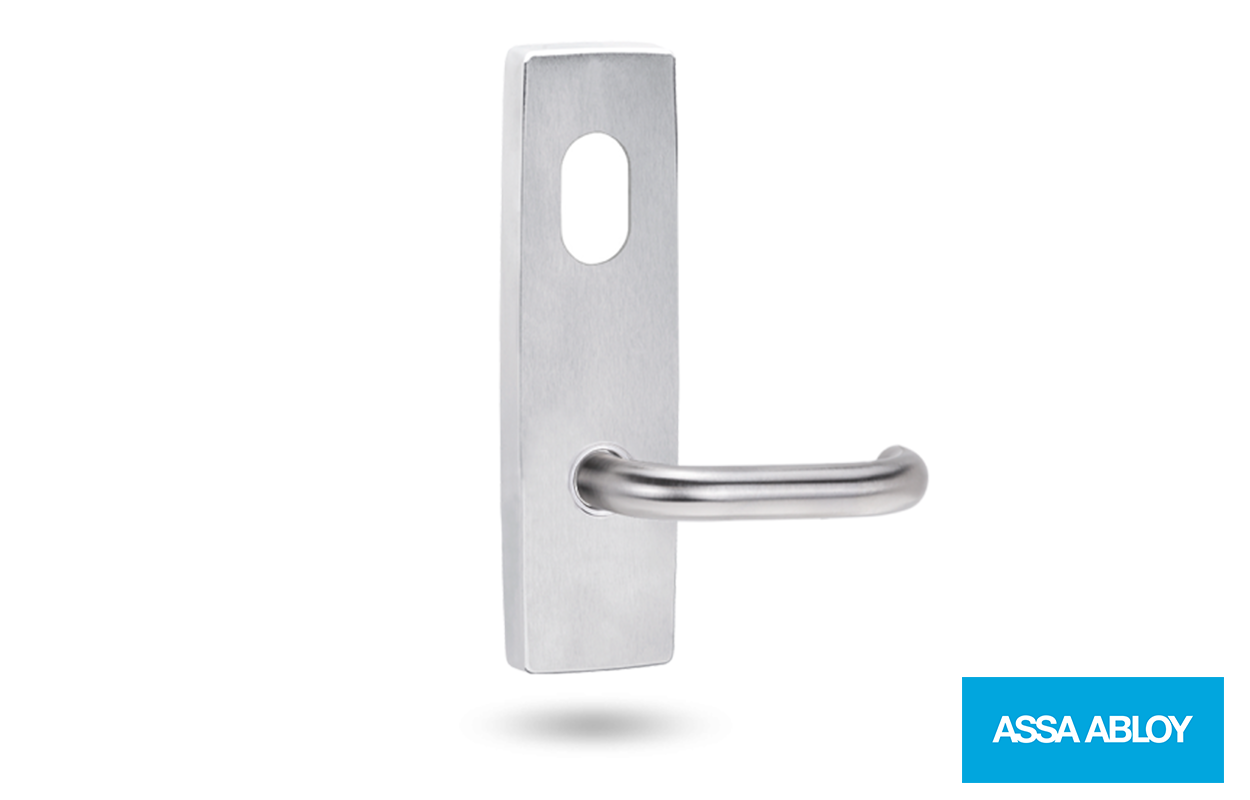

EXT SQ END PLATE - CYLINDER AND LEVER 70 SATIN CHROME

Lockwood 1800 Series Square End Plate Brass Furniture

Style and versatility are combined in this range, which comprises architecturally designed plates which give you the flexibility to mix and match to suit the aesthetics of every application.

Lockwood Brass Plate furniture is made from the highest quality materials and is available in a comprehensive array of levers in a range of superb finishes that provide complete freedom of choice. The Lockwood Brass Door Furniture range is the culmination of decades of experience in the design and manufacture of high-quality door furniture. Over the years, the Lockwood brass door range has evolved as the product of choice for leading architects in commercial, institutional and industrial applications.

The timeless design of this tubular-shaped lever signifies quality and strength.

The 1800 Series features a classic rectangular plate with bevelled edge,s suiting corporate, commercial and public spaces with high use requirements. Designed for use with Lockwood Synergy 3570 and Selector 3770 Series Mortice Locks.

• Lockwood lever 70
• External plate with concealed fixing (screws included)
• Cylinder hole (cylinder not included)
• Cylinder pitch 64mm
• Fixing centres 148mm
• Non-handed
• Supplied in trade pack

L1801/70SC MOUNTING INSTRUCTION

Plate Dimensions
Height: 166mm
Width: 48mm
Depth: 12mm

Lever Dimensions
Length: 121mm
Projection: 53mm
Finger clearance: 37mm
