Dahua Solar kit

Please check stock availability on individual items.

4MP IR Fixed-focal Bullet WizSense 4G Network Camera - Individual listing here

Integrated Solar Power System (without Lithium Battery) - Individual listing here

Integrated Solar Lithium Battery - Individual listing here

Installation Video

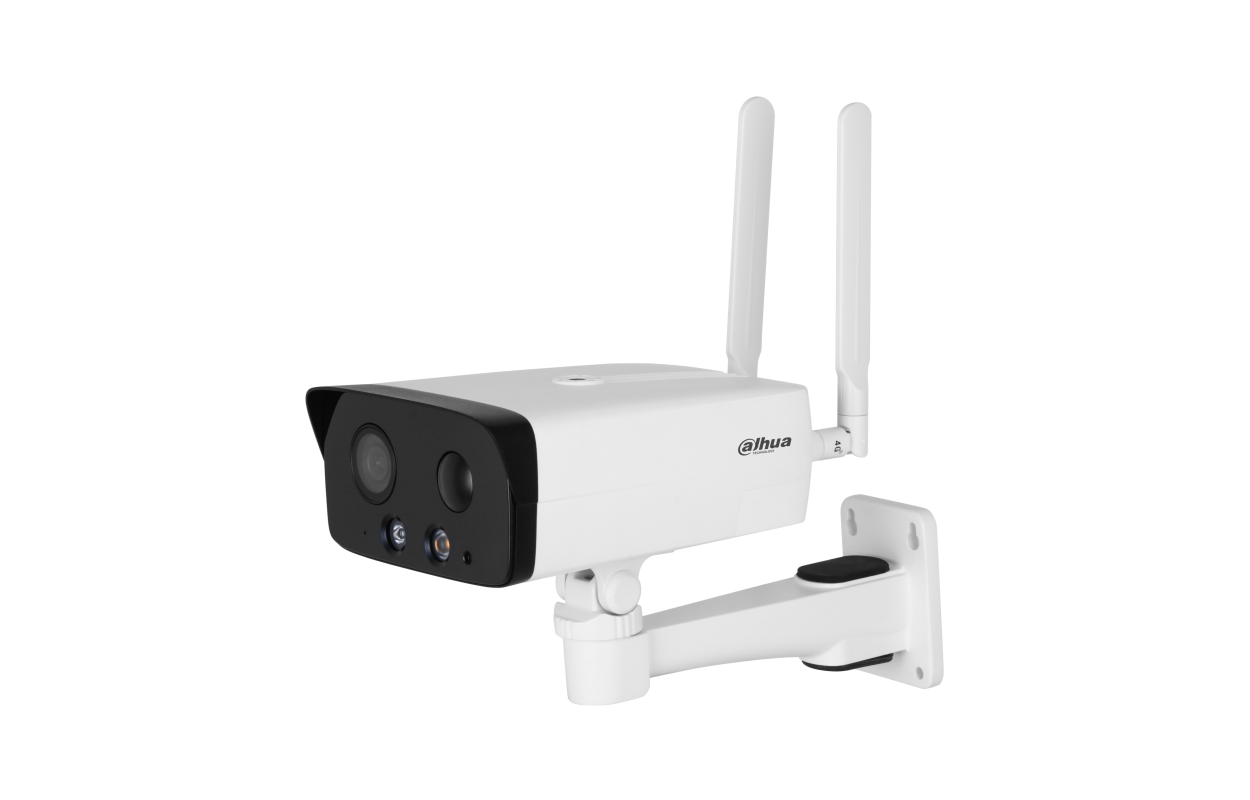

Camera features:

• 4-MP 1/3" CMOS image sensor, low luminance, and high definition image.
• Outputs max. 4 MP (2688 × 1520) @25/30 fps.
• H.265 codec, high compression rate, ultra-low bit rate.
• Built-in warm light/IR LED.
• Sound and light alarm linkage. When the alarm is triggered, the sound and light will be linked.
• Built in high-performance 4G Module that suits all mobile networks. Installation is no longer limited to wired networks. Please test the local 4G network with the camera before use.
• Built-in PIR sensor that detects human body through passive infrared which is sensitive to body temperature.
• Built-in 8 GB eMMC memory chip that protects key records from being lost.
• Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
• Abnormality detection: Motion detection, video tampering, audio detection, SD card full, SD card error, network disconnection, IP conflict and illegal access.
• Alarm: 1 in, 1 out; audio: 1 in, 1 out; RS485:1 (Only report the information of solar battery, such as power and battery level), Supports max. 256 G Micro SD card; built in MIC and speaker; support two-way talk.
• IP67 protection.

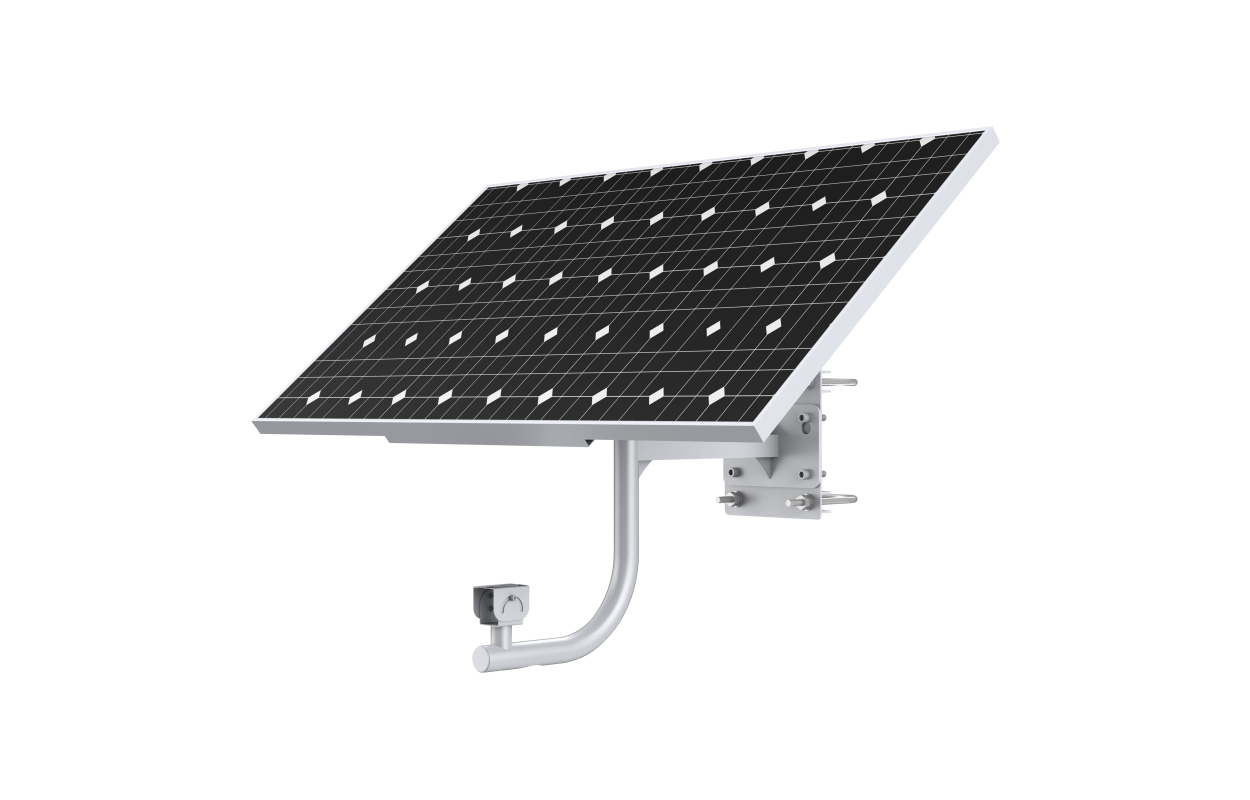

Solar Panel features:

• Integrated design, easy to install.
• Pole mount.
• Flexible angle adjustment of the solar panel and the camera.
• 100W Monocrystalline solar panel.
• Built sturdy to resist storms with sustained winds up to 117 km/h.
• Remote monitoring available through the mobile app.
• Maximum Power Point Tracking (MPPT) charging controller.
• RS-485 communication function.
• Electric protection.

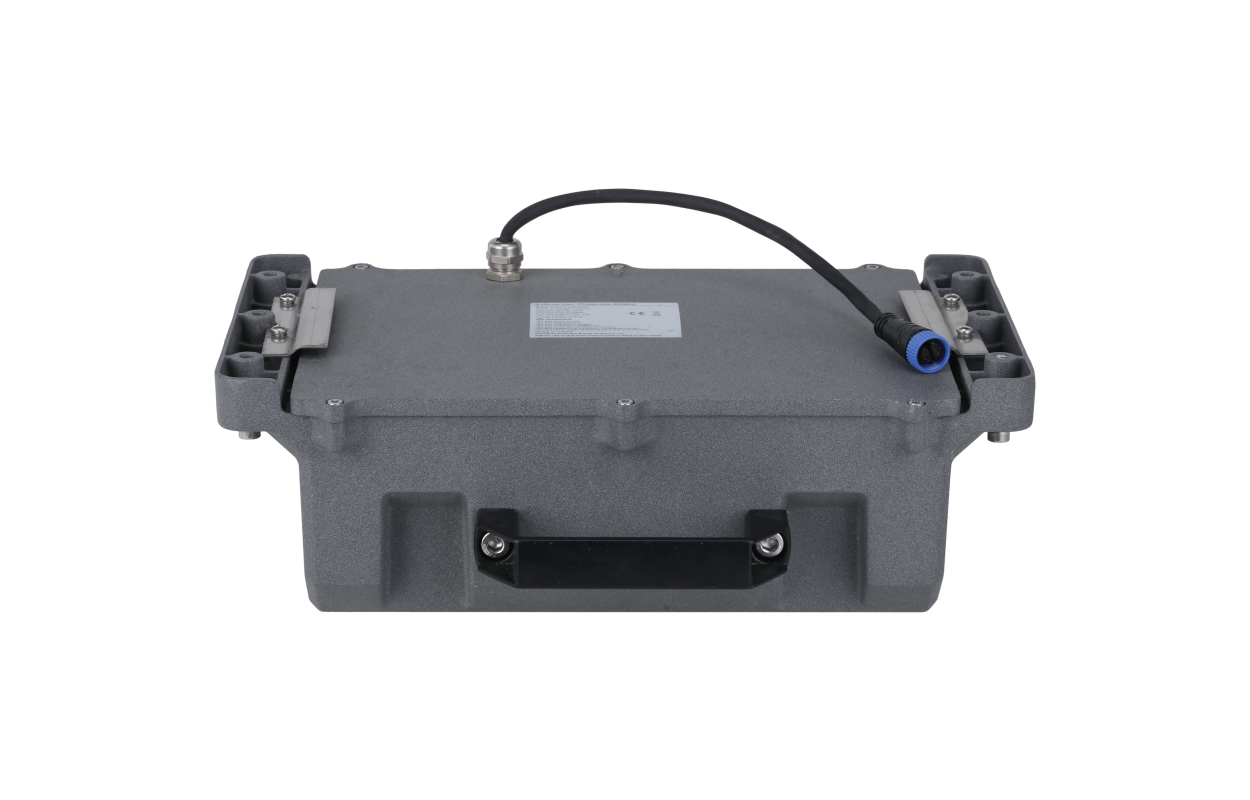

Battery features:

• Die casting aluminum material, IP66 protection grade
• Simple structure, compact and light
• Applicable to the integrated solar system DH-PFM364L-D1, DH- PFM363L-D1, and DH-PFM363L-SD1

Camera - DH-IPC-HFW3441DG-AS-4G-EAU-B (2.8mm) SPECSHEET

Solar panel - DH-PFM378-B100-WB SPECSHEET

Battery - PFM372-L45-4S14P SPECSHEET
