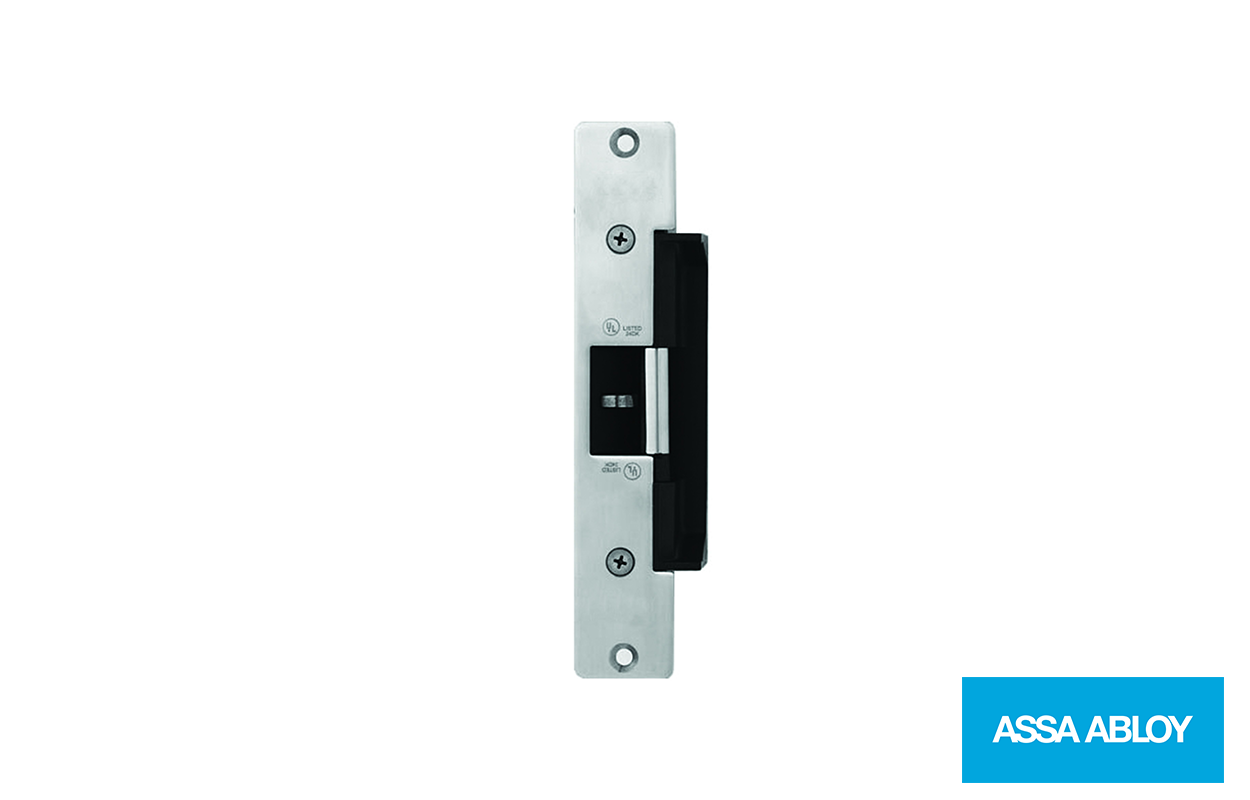

Trimec TS3201 Electric Strike

The ES300 (non-monitored) and ES3000 (monitored) groups of patented Burglar Resistant Strikes are designed for high-security applications and manufactured from solid stainless steel.

These long ANSI strikes offer a strong, dependable and long-lasting electric strike solution and are suitable for use with any access control system using 90-degree swing doors.

These strikes are extremely flexible and can be changed from power-to-lock or power-to-open, mounted on the left or right-hand side of the door and come as standard with a continuously rated coil, thus reducing the amount of stock needed to cover each application.

• Preset power to lock/power to open field changeable on site
• high-security with tamper-resistant to all known techniques
• Extra security with 3 hardened locking pins
• cast stain-resistant body
• low current consumption with max 175mA at 12 volts DC
• Solenoid rated for continuous use
• flexible cable exit is interchangeable, rear and side
• An optional mounting kit to reduce installation time
• The installation template is an easy-to-use stick-on template for faster installations
• tested to UL1034 (highest level)
• cycle tested to 1,000,000 cycles

LT113201-030 INSTALLATION SHEET
