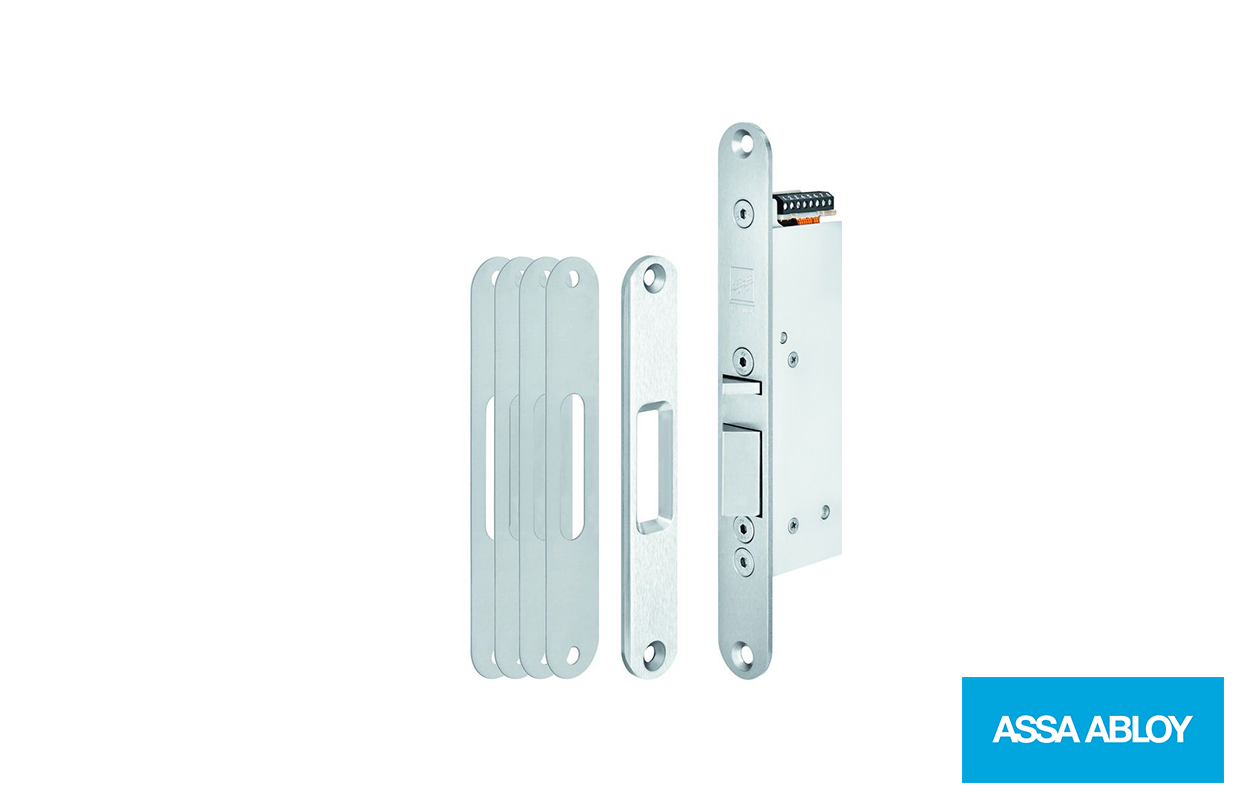

351U80 Solenoid Lock - Fail Safe - 12VDC

The 351 Solenoid is an electromechanical lock which operates on Fail Safe principle and can be used for double-action swinging doors, single-action doors.

With a pre-load of 510kg, this lock is also best suited for perimeter and high-traffic applications.

• Suitable as a supplementary locking system for installation in fire doors
• Vertical and horizontal universal installation position in the door frame or in the door leaf

• Holding force of 510 kg
• Reliable unlocking under preload
• Monitoring contact and armature contact integrated
• Sturdy design for demanding requirements

• Handing Universal
• Operating Voltage 12 V DC
• Monitoring contact (RR) Yes
• Diode (05) Yes
• Fail-unlocked Yes
• Rated operating voltage tolerance range 12 V ± 1 V
• Nominal resistance 12 V 37 ?
• Current consumption DC (stabilized) 12 V 320 mA
• Dead bolt cutout No
• Faceplate Thickness 2 mm
• Anchor contact Yes
• Break-in resistance 510 kg
• Max. Latch preload 510 kg
• Continuous function load cycles 200,000
• Color Stainless steel

Dimensions:

• Length: 200 mm
• Width: 25 mm
• Depth: 42 mm
