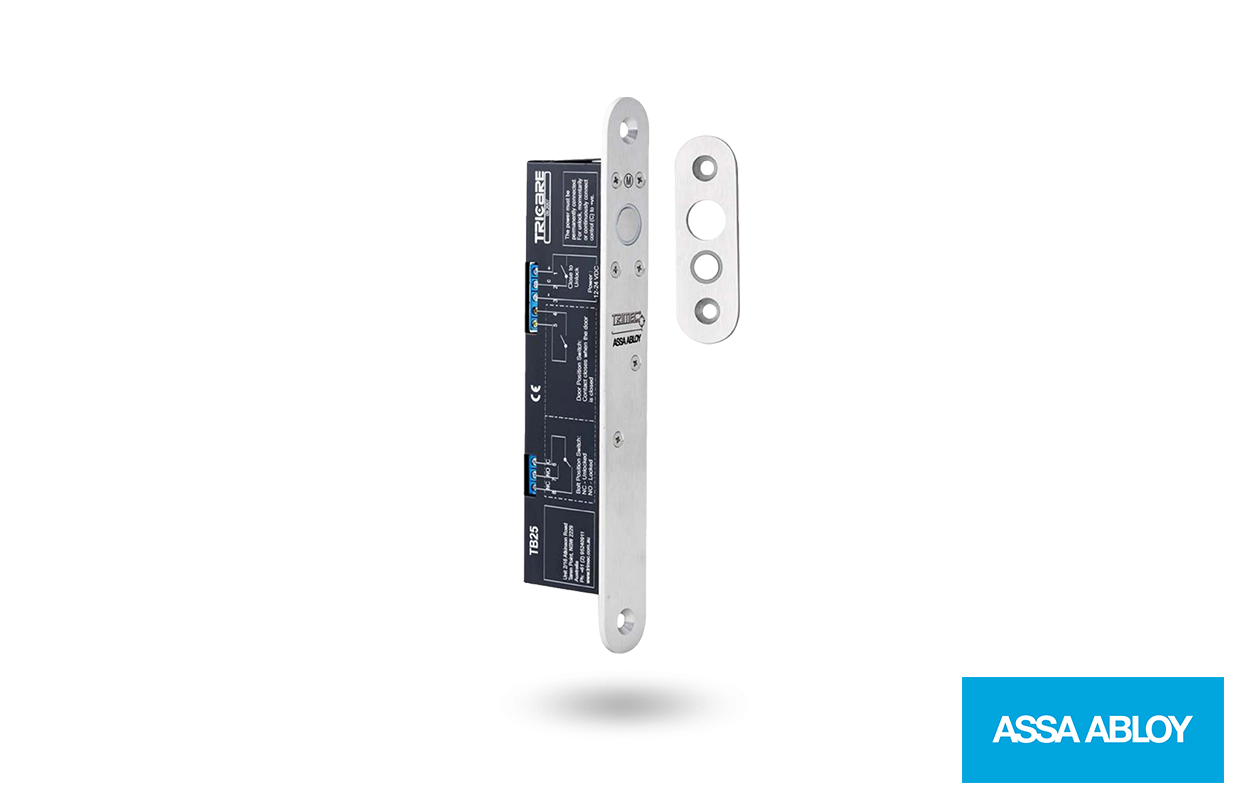

Trimec TB25 SS Faceplate Dropbolt with Strike Plate

The Trimec TB25 drop bolt also represents true engineering innovation, design excellence, and the superior quality customers have come to expect and demand from Trimec. Designed for use on swing-through, double-action doors, these drop bolts are ideal for applications where an electric strike is impractical. The TB25 offer a unique mechanical override with an integrated euro profile cylinder.

Applications

• Glass doors
• Timber doors

• High Security. Bolt is deadlocked in the extended position
• Bolt position monitored
• Door position monitor with integrated magnet into the strike plate (no need to install a separate reed switch)
• Multiple Orientation, drop bolts will work horizontally or vertically
• Power to Lock
• Continuously Rated Solenoid
• Tamper Proof. Lock cannot be defeated by slipping a metal object between the lock and the striker plate
• Intelligent Electronics. These intelligent bolts will attempt to re-close the bolt 8 times, allowing time for swing-through doors to settle in the closed position
• Thermal Protection. In the event of a solenoid overheat, a thermal fuse will operate, eliminating any fire risk
• Supplied in a trade pack

Mortice Body

Height: 228mm
Width: 22mm
Depth: 33mm
Bolt Length: 12.7 x 16mm

Faceplate Size
Height: 280mm
Width: 25mm

TB25-1 CATALOGUE
