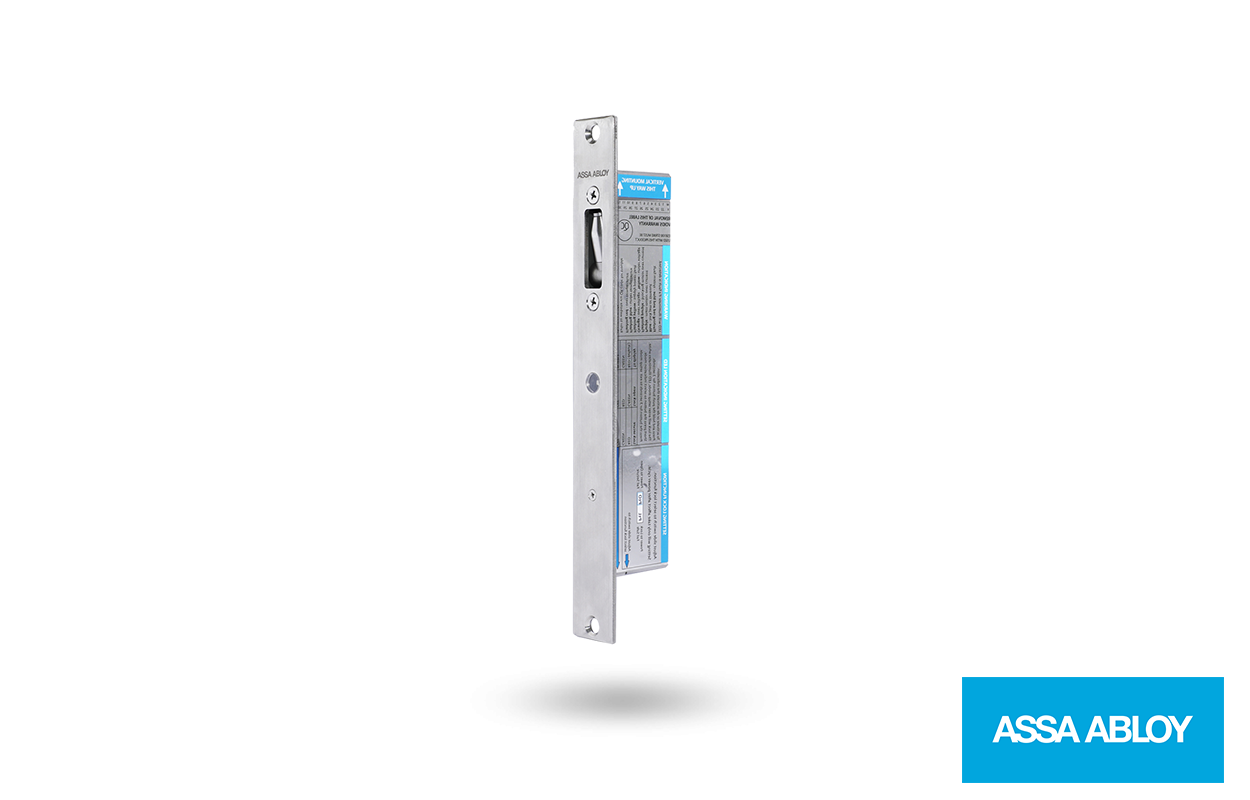

Trimec ES8100 V-Lock - Fail Safe

The ES8100, also known as the V-lock, contains a high-torque motorised bolt which moves into a V-shaped Strike Plate, pulling the door into alignment when locked. The ES8100 may be mounted either vertically or horizontally, but cannot be mounted on the floor.

The ES8100 V-Lock can be mortice mounted and concealed from view or surface mounted, with the inclusion of an optional kit. A slim design with a classic satin stainless steel faceplate makes the ES8100 a product with great aesthetic appearance and easy installation.

Applications

• Single and Double Swing Hinge Doors
• Doors subject to Side Load (Pre-Load)
• Misaligned doors
• Glass doors
• Suitable for use with Access Control, Intercom, Keypad and Card Reader Systems and doors requiring door position monitoring

• Unlocks under a Pre-Load of up to 100kg in 3-wire mode, 15kg in 2-wire mode
• Locks under a Pre-Load of 20kg (12W) and 35kg (24W)
• 1000kg Holding Force
• IP53 rated for external door applications
• Door Position and Lock Status Monitoring
• On-Board visual Lock Status indication and diagnostics LED
• Easy, one-step, Fail Safe (PTL) and Fail Secure (PTO) field selection
• Optional Surface / Glass Mount Kit
• May be mounted vertically or horizontally (must not be mounted on the floor)
• Allows for door misalignment of up to 12mm total (+/-6mm)
• Operating voltage: 11.4 - 26VDC
• Durability tested to 500,000 cycles (120N unlocking, 50N locking)
• Supplied in a trade pack

Dimensions

• Body: 210mm (L) x 24mm (W) x 42mm (D)
• Faceplate: 256mm (L) x 30mm (W)
• Strike Plate: 256mm (L) x 30mm (W)
