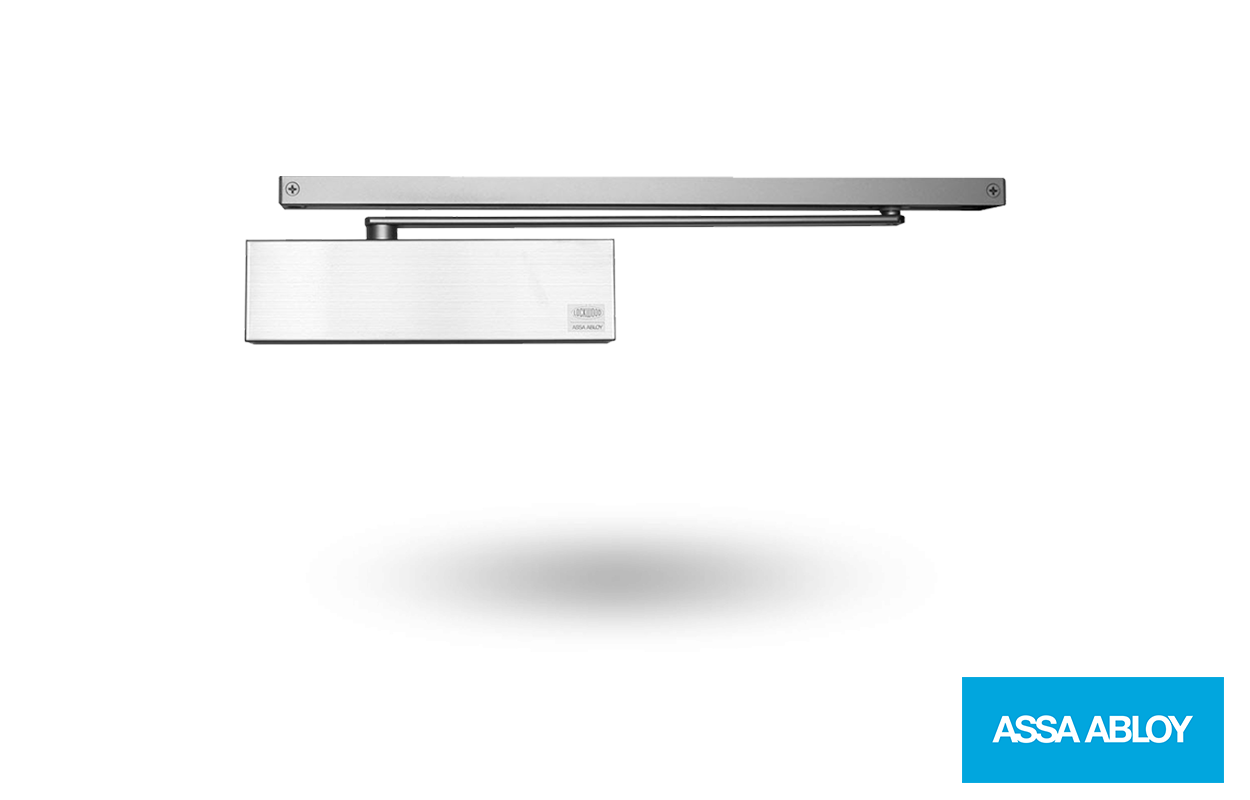

Lockwood 2615DASIL Delayed Action Door Closer

Code: 2615DASIL

The Lockwood 2615 Series is a non-handed CAM Action Door Closer. Due to the CAM design, this premium door closer is light to open but still strong enough to close a door. The Lockwood 2615 Door Closer can be adjusted to meet the requirements of a light door opening resistance and is ideal for both interior and exterior doors.

The Lockwood 2615 is light to open, but its adjustable closing force is high enough for heavy-duty applications. For disabled toilet applications where a breakout feature is required, the double-action of the mechanism allows the door to be operated in the opposite direction for easy access into the room. One model (2615) covers right-hand and left-hand applications, pull-side/push-side applications and also features an adjustable arm height.



  • The 2615 has a very high efficiency of 70%-80%
  • EN adjustable power from 1 to 5
  • Back check (BC) is adjustable
  • Adjustable hold-open can be set at any angle up to 120° of opening
  • Non-handed.
  • Suitable for left or right-hand doors.
  • Formed metal cover
  • Cast aluminium body manufactured from high-performance silicon alloy
  • CAM action mechanism
  • Pull side, push side and over-door mounting
  • Two pressure relief valves are a standard feature to protect against abuse
  • Adjustable delayed action
  • Adjustable closing speed
  • Adjustable latching speed

Note: The Hold open option is not approved on any fire door.
