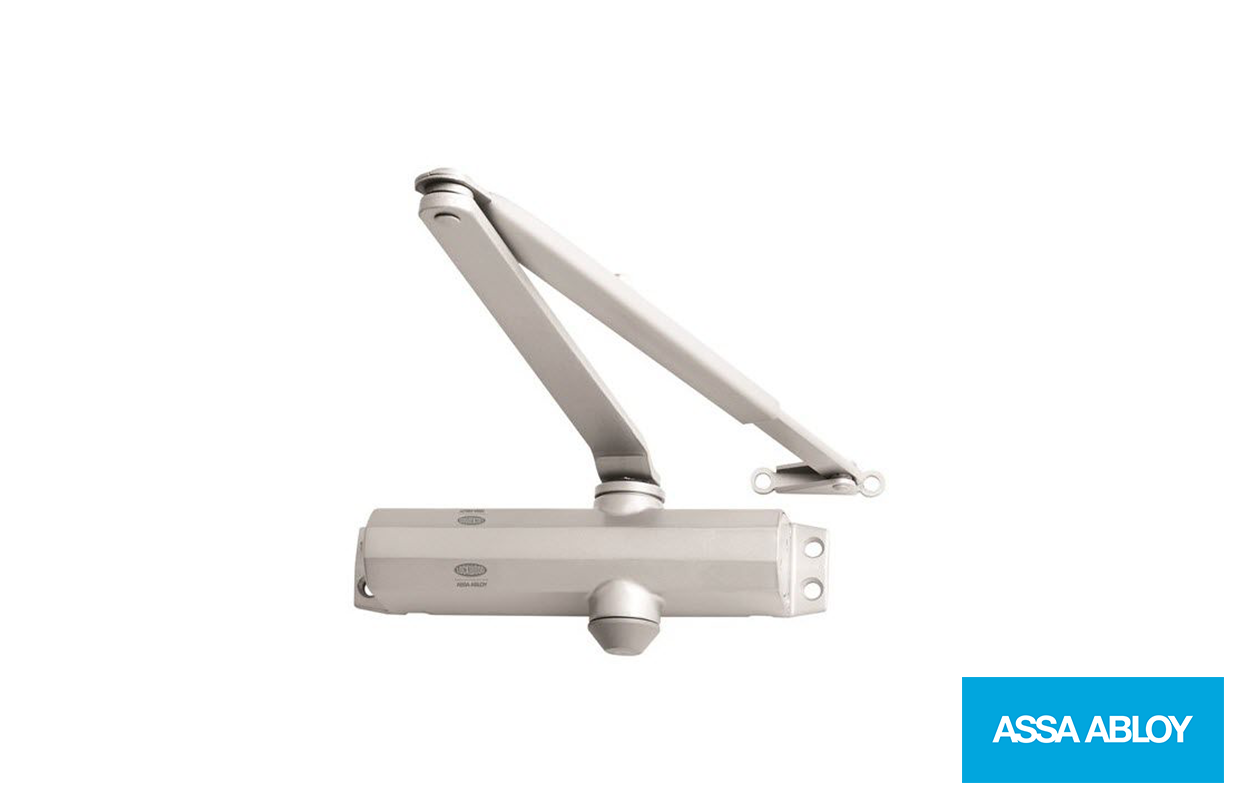

Lockwood 2024BC Door Closer

The Lockwood range of economy door closers is particularly quick and easy to install on most applications, ideally suitable where cost is a high priority.

Multi-position mounting template enables adjustment on site to meet most conditions, also low stock holding as one model will cover 3 power sizes. Suitable for doors up to 1100 mm in width. All products include a parallel arm bracket; multi-strength mounting (one model covers sizes 2, 3 and 4); parallel arm sizes 2 and 3.

• Independent valves control closing and latching speeds, which can be readily adjusted on site when required.
• EN power selectable 2 to 4.
• Back-check cushions or slow the door before reaching the final opening position.
• Adjustable hold-open can be set at any angle up to 130° of opening.
• Non-handed.
• Suitable for left or right-hand doors.
• The hold-open option is not approved on any fire door.
• High-purity die-cast aluminium housing with hardened steel rack and pinion mechanism.
• Rack and pinion design.
• Standard arm
• Regular, parallel and over-door.
• Supplied in a trade pack

Note: The Hold open option is not approved on any fire door.

L2024BCSIL CATALOGUE
