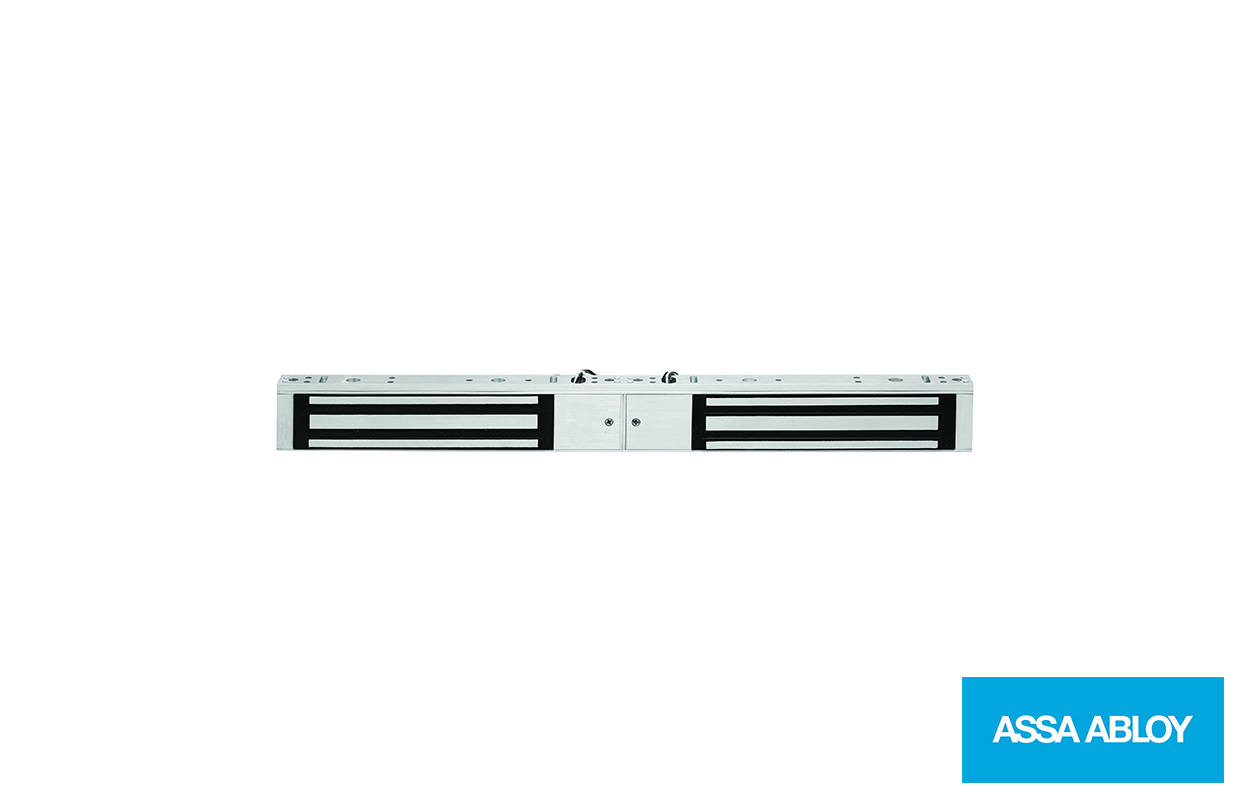

Trimec 770600-110 1300lb Double Z8 Mag Lock MBS

The Double Series Electromagnetic Locks (maglocks/mag locks), operate with holding forces from 500kg up to 1160kg. Covering a range of applications these magnets are ideal for applications from accessways through to high-use commercial swing doors.

Applications

• Aluminium doors
• Double swing doors
• Access control
• Surface mount for inswing and outswing doors

• Fail-safe: unlocks when power is removed
• Easy installation: suitable for both new and retrofit usage
• High holding force: refer to the technical data overleaf
• Self-alignment: armature plate pivots to accommodate door drop
• Silent operation: no humming or buzzing
• Dual voltage: site selectable 12 or 24 Vdc
• Monitoring: Hall-Effect and Reed Switch monitoring on all models

• Instantaneous release: smart electronics on the Z Series Electromagnets eliminate residual magnetism




LT770600-110 DATASHEET & INSTALLATION
