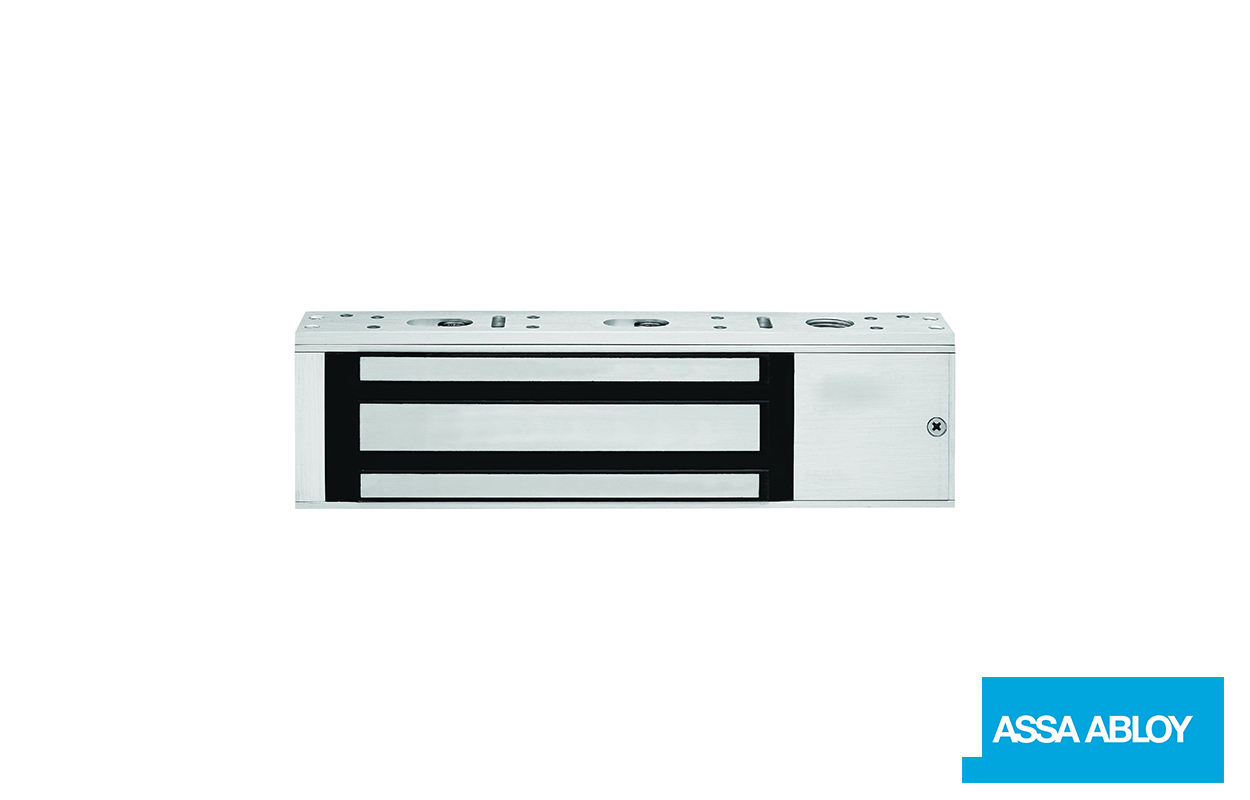

Trimec 770600-012 1300lb Z8 Mag Lock MBS+DPS

The Single Series Electromagnetic Locks (maglocks/mag locks), operate with holding forces from 250kg up to 580kg. Covering a range of applications the Z4 and Z8 Electromagnets are ideal for applications from Standard doors through to high-use commercial swing doors.

Applications

• Aluminium doors
• Glass doors
• IT Storage rooms
• Access control
• Surface mount for inswing and outswing doors

• Fail-safe: unlocks when power is removed
• Easy installation: suitable for both new and retrofit usage
• High holding force: refer to the technical data overleaf
• Self-alignment: armature plate pivots to accommodate door drop
• Silent operation: no humming or buzzing
• Dual voltage: site selectable 12 or 24 Vdc
• Monitoring: Reed Switch is monitoring all models. Hall-Effect monitoring on Z8 models.
• Instantaneous release: smart electronics on the Z Series Electromagnets eliminate residual magnetism




LT770600-012 DATASHEET & INSTALLATION
