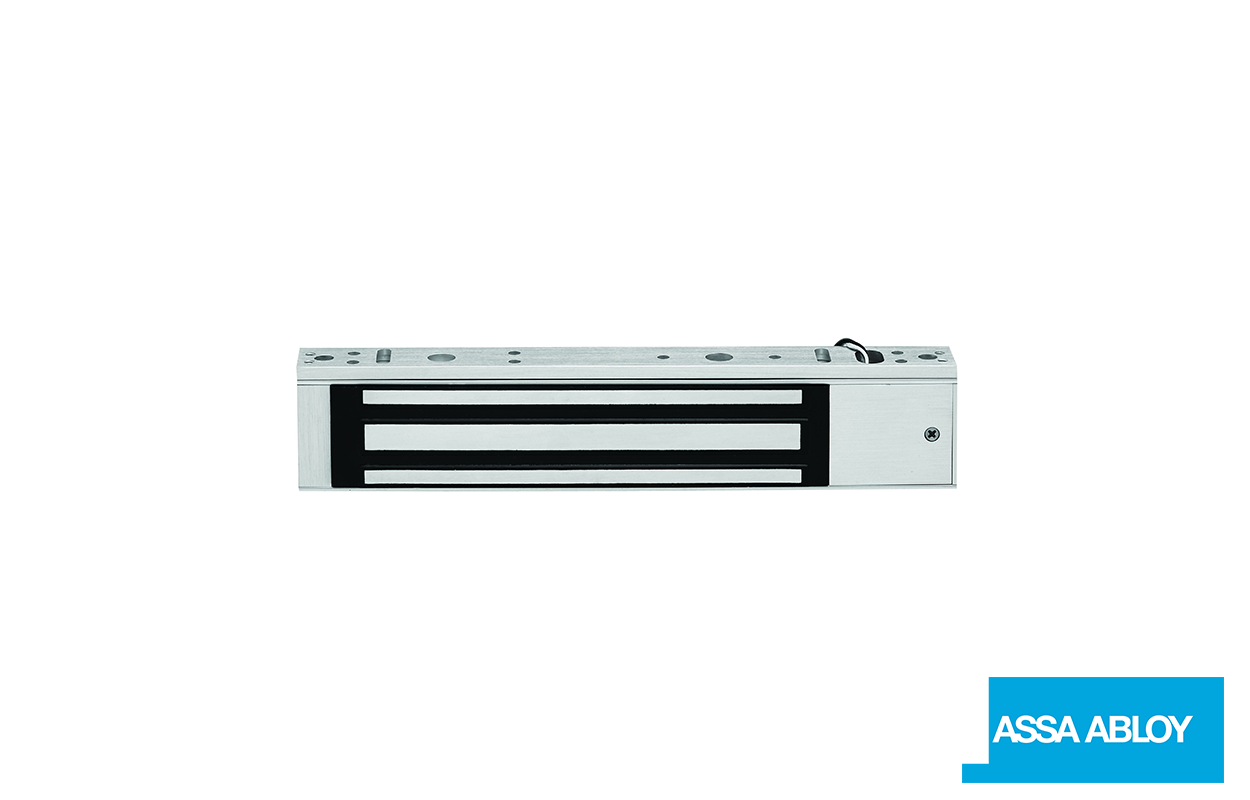

Trimec 770150-010 220lb Z2 Mag Lock with MBS

The Single Series Electromagnetic Locks (maglocks/mag locks) operate with holding forces from 250kg up to 580kg. The Z2, Z4, and Z8 electromagnets cover a range of applications, from Standard doors to high-use commercial swing doors.

• Fail-safe: unlocks when power is removed
• Easy installation: suitable for both new and retrofit usage
• High holding force: refer to the technical data overleaf
• Self-alignment: armature plate pivots to accommodate door drop
• Silent operation: no humming or buzzing
• Dual voltage: site selectable 12 or 24 Vdc
• Monitoring: Reed Switch is monitoring all models.
• Instantaneous release: innovative electronics on the Z Series Electromagnets eliminate residual magnetism

LT770150-010 DATA SHEET & INSTALLATION SHEET
