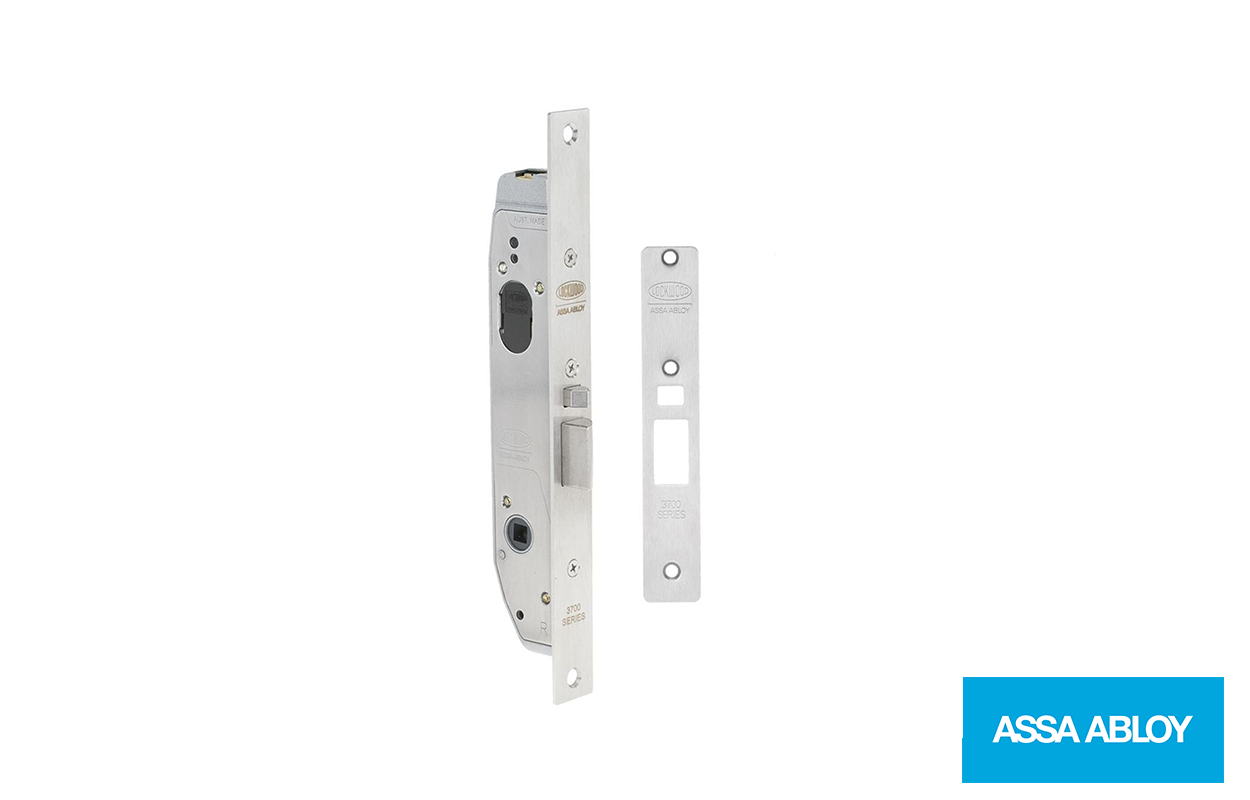

ASSA ABLOY Lockwood 5782ELNZSS 30mm Backset No Cylinder Monitored - Premium

Designed and manufactured in Australia the Selector 3782EL is a high performance electric mortice lock for narrow stile-hinged doors. Designed to meet the varying requirements of commercial applications, the lock is the ideal complement to high-security access control systems and a great locking product to use with intercoms, keypads and key switches due to the intuitive operation of a locked or unlocked handle. These locks comply with building regulations for single-action escape doors.

Features

• 30mm backset
• Variable voltage from 9 – 28VDC
• Simple in-field selection of power to lock (fail-secure) or open (fail-safe)
• Full range of monitoring including Request to Exit (REX), Deadlatch, Door position, Key Override Monitoring (KOM) and locked status
• Onboard door status LEDs improve installation and reliability
• Unique functions for the reader in / out applications allow the external side to fail securely while the internal side fails safely allowing free egress
• Motor-driven provides lower power usage in power to lock applications
• 3 wire control means the power can be supplied independently to the locking control signal making the lock less susceptible to issues associated with voltage drop across long wiring runs
• Supplied with short and long forend plates
