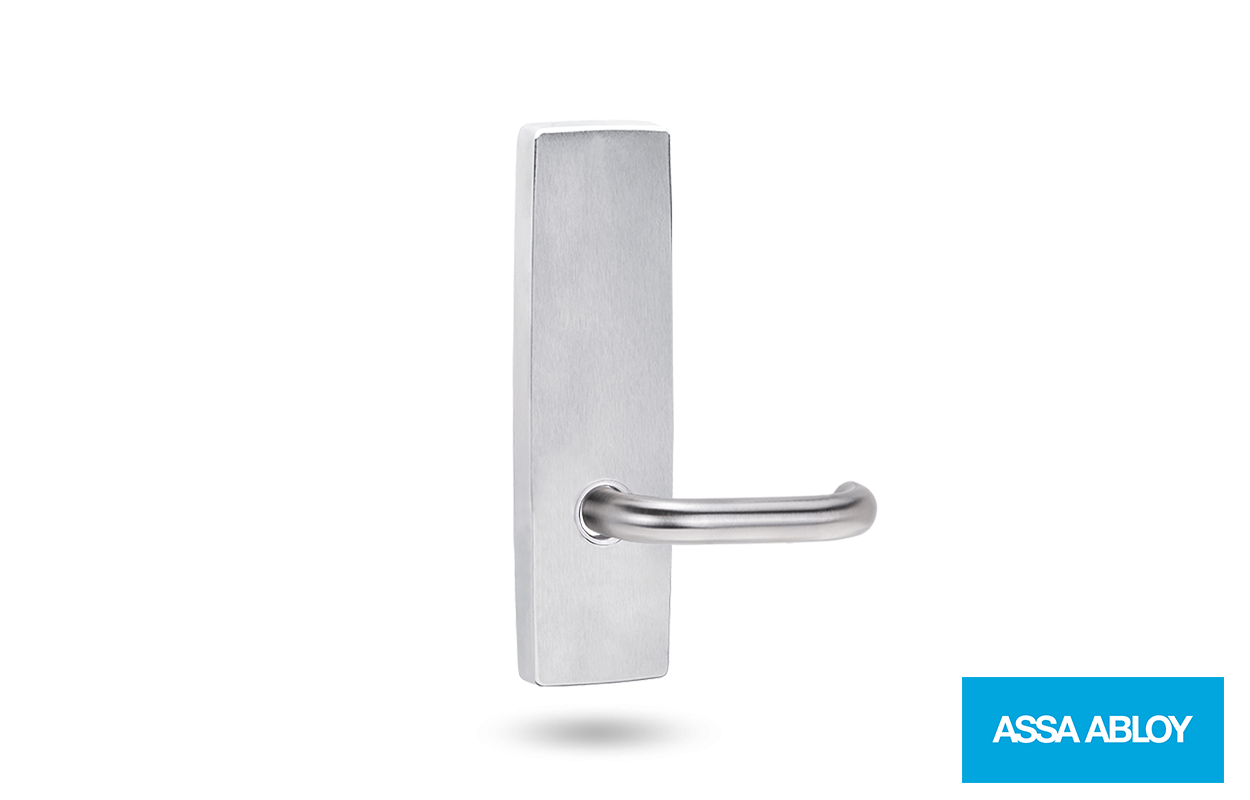

Lockwood 1805/70SC External Plate & Lever - 60mm Backset

Style and versatility are combined in this range which comprises of architecturally designed plates which give you the flexibility to mix and match to suit the aesthetics of every application.


Lever Dimensions:
Length - 121mm
Projection - 53mm
Finger clearance - 37mm


Plate Dimensions:
Height - 166mm
Width - 48mm
Depth - 12mm

The 1800 Series features a classic rectangular plate with bevelled edges suiting corporate, commercial and public spaces with high-use requirements. Designed for use with Lockwood Synergy 3570 and Selector 3770 Series Mortice Locks.

Features

• Lockwood lever 70
• External plate with concealed fixing (screws included)
• Lever only
• Cylinder pitch 64mm
• Fixing centres 148mm
• Non-handed
• Supplied in trade pack

L1805/70SC CATALOGUE

L1805/70SC INSTRUCTION
