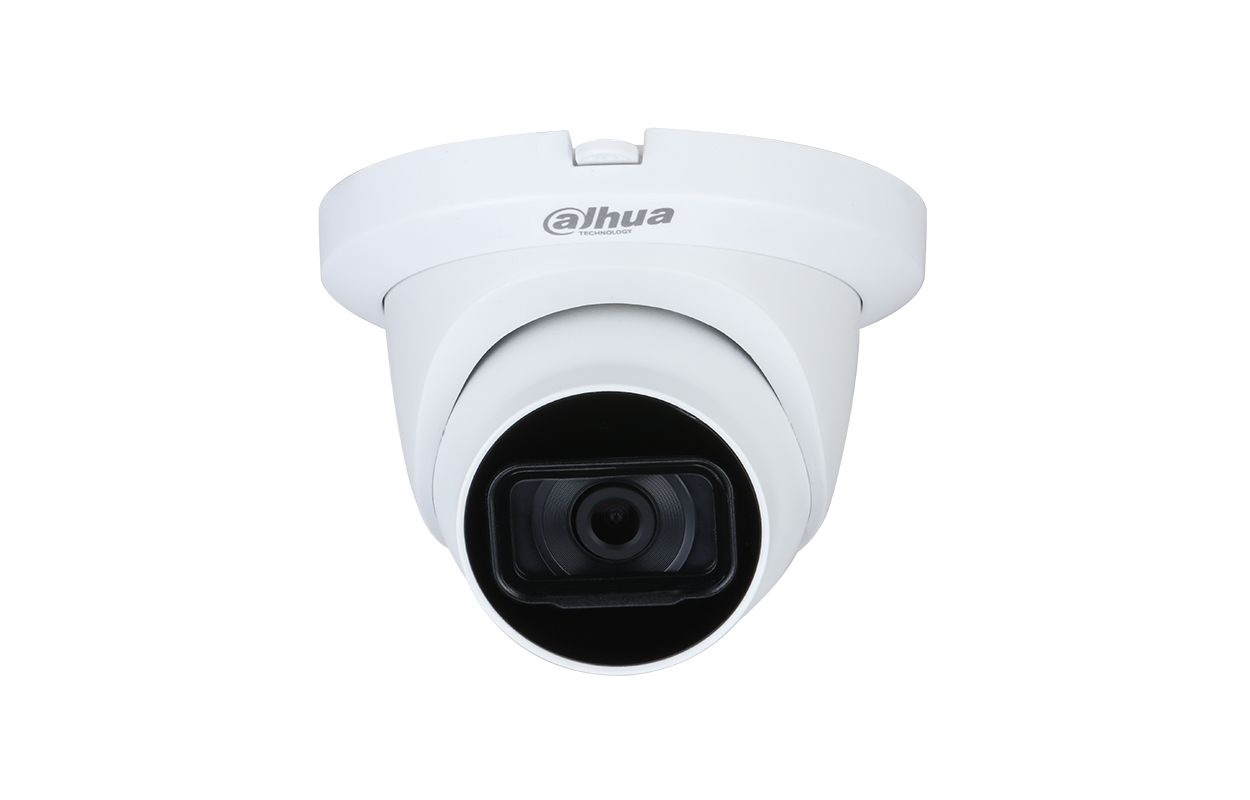

5MP Starlight HDCVI Quick-to-install IR Eyeball Camera

* The parameters and datasheets below can only be applied to the 2501-S2 series.

* To use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or a later version.

• Max 25 fps@5MP (16:9 video output)
• Starlight, 120 dB true WDR, 3D NR
• CVI/CVBS/AHD/TVI switchable
• Quick-to-install eyeball saves installation time
• 3.6 mm fixed lens (2.8 mm,6 mm optional)
• Built-in mic
• Max. IR length 60 m, Smart IR
• IP67, DC12V±30%

DH-HAC-HDW2501TMQP-A SPEC SHEET
