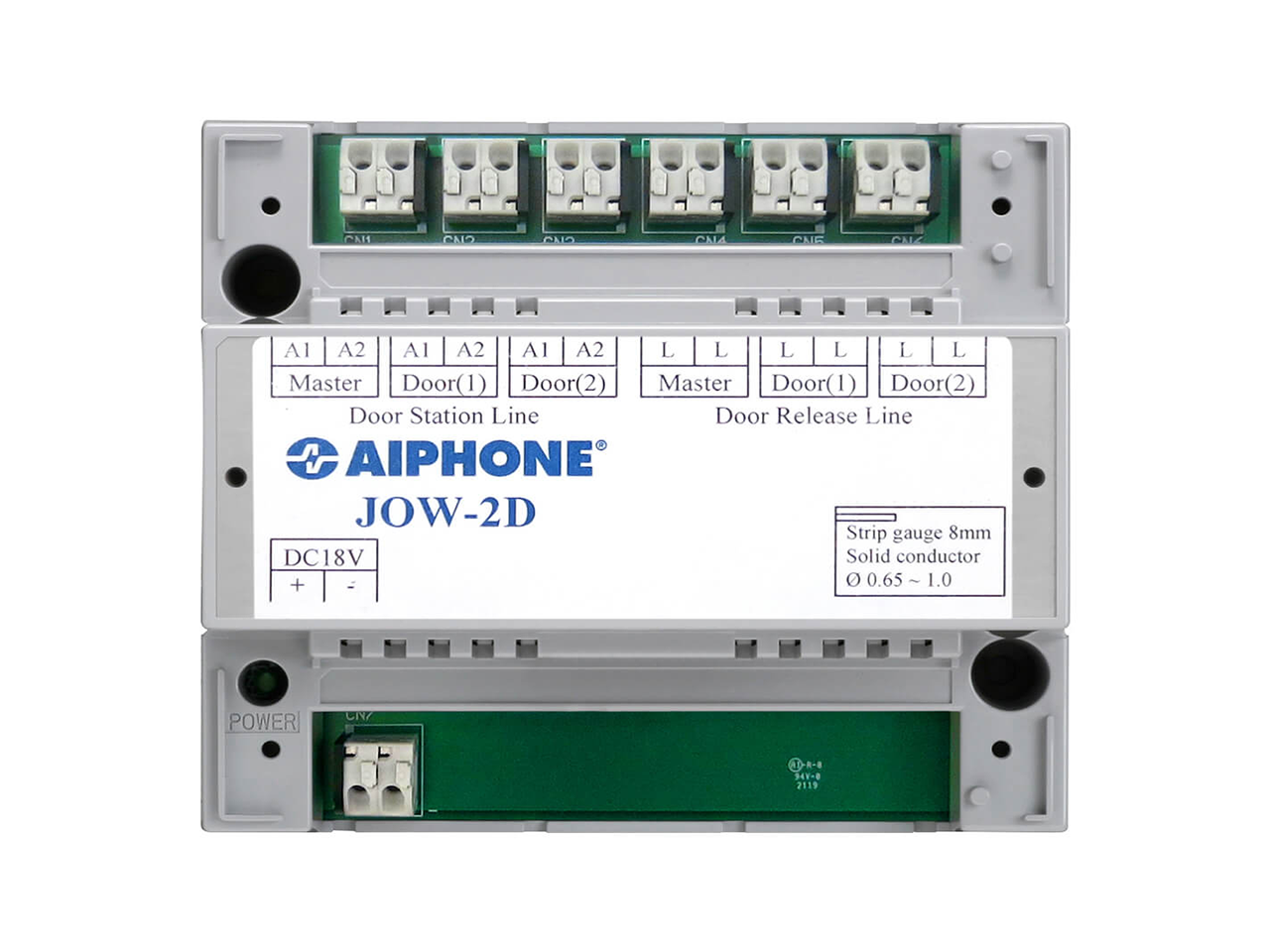

Two door adaptor for the JO series

The JOW-2D is an adaptor for the JO Series video intercom system. It allows two video door stations to be used in a standard or app-enabled system.

• Allows a second door station to be connected to any JO Series system
• Can be added to existing systems for expansion
• Includes normally open contacts to activate a strike for unlocking the door

• Power - 18V DC (supplied by JO Series master station)
• Consumption - 100mA (max), 18mA (standby)
• Relay Outputs - 24V DC, 1A (JO-1MDW) 24V DC, 500mA (JO-1MD, JO-1FD)
• Operating Temperature - 0° ~ 40°C
• Dimensions - 4-¼" H x 4-13⁄16" W x 2-⅜" D
