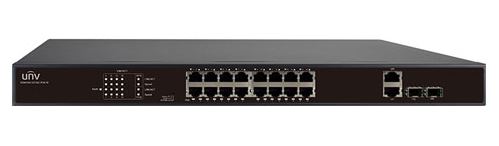

16-Port PoE Switch Uniview (UNV)

Code: NSW2010-16T2GC-POE-IN

16-Port PoE Switch

  • Multiple working modes to address your business needs:Normal, Secure and Surveillance
  • Support port traffic control
  • Support for secure mode, all downlink ports can communicate only with uplink ports
  • Up to 250m transmission distance on surveillance mode
  • Support buffer optimization
  • All metal housing, safe and reliable

Model Description
Ports 16100Mbps PoE ports (RJ45)+21000Mbps Combo ports
Standards IEEE802.3,IEEE802.3u,IEEE802.3z,IEEE802.3ab,IEEE802.3x,IEEE802.3af,IEEE802.3at,IEEE802.3az
Switching capacity 7.2Gbps
Forwarding performance 5.36Mpps
Packet Buffer 4Mbit
Dimensions (WDH) 440mm x 207mm x 45mm(17.3"8.1"1.8")
Weight <4.2kg
Power supply AC: 100-240V, 50/60Hz
PoE 802.3at/af
Max. PoE Power Max capacity: 250W
Max capacity for single port: 30W
Switch Power 270W
Surge Protection Common mode 6KV Differential mode 4KV
Electrostatic standard Common mode 6KV Differential mode 8KV
Cooling Fans 2
Mean Time Between Failure(MTBF) >50000 hours
Operating temperature 0C-40C (32F-104F)
Operating humidity 10%?90% (noncondensing)
Storage humidity 5%?90% (noncondensing)
Indicator PWR:
Steady on: AC input is normal
Off: No AC input
Off: No PoE power supply
Steady on: PoE power supply is normal
Flashing: PoE power supply is abnormal
Off: No link
Steady: Linked at 10/100Mbps
Flashing: Transmitting data
Off: Linked at 10/100Mbps
On: Linked at 1000Mbps
Working Mode Default(Normal mode) : All ports can communicate with each other.
VLAN(Secure mode): Downlink ports can communicate only with uplink ports.
EXTEND(Surveillance mode): Transmission distance up to 250 meters ,also downlink ports can communicate only with uplink ports.
