IP Lift Control Adaptor

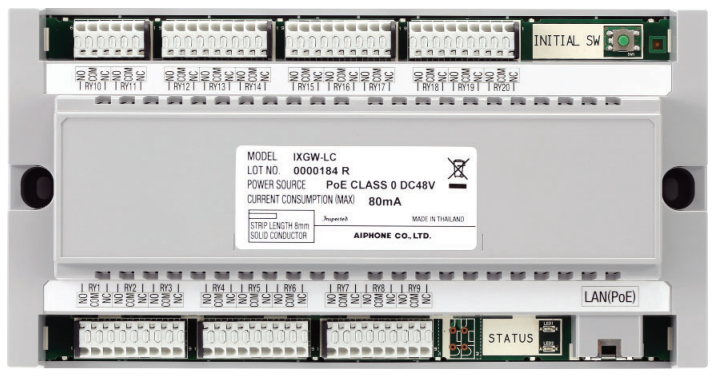

The IXGW-LC is a lift control adaptor for the IXG Series IP multi-tenant system. This adaptor allows for integration to the elevator control system allowing the elevator to be called to specifi c fl oors based on which tenant opened the door.

The IXGW-LC is equipped with 20 Form C relays and up to 16 adaptors can be included in a building. Each relay can be confi gured and assigned to a specifi c entry, tenant station, or app. Individual relay contacts can be activated when a specifi c tenant activates door release on a specifi c entry panel allowing the elevator to open and go to a specifi c fl oor. Additionally the elevator recall button on the IXG-2C7 can be used to activate a contact to recall the elevator to that specifi c fl oor.

• PoE compliant
• 20 Form C relays
• Relay rating (24V AC/DC 500mA)
• Max of 16 adaptors per building

Power Source: PoE

Consumption: Standby 2.1W, Max 4.4W

LAN: Ethernet (10BASE-T, 100BASE-TX)

Packet delivery: Unicast, Multicast

Protocol: IPv4/v6, TCP, UDP, HTTP, HTTPS, IGMP, MLD, FTP, DHCP, NTP, DNS, TLS

Encryption: TLS 1.0, 1.1, 1.2

Operating Temp: 14 ~ 122F (-10 ~ 50C)
