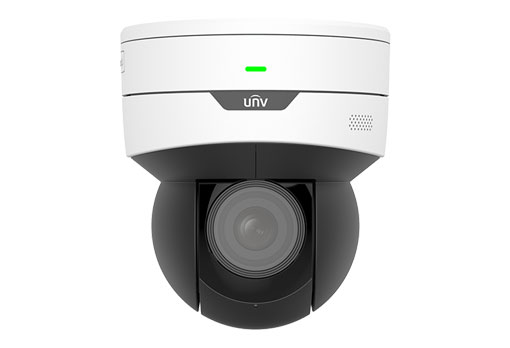

5MP WDR Starlight IR Network Indoor MiniPTZ Dome Camera
Code: IPC6415SR-X5UPW
- Sales
- New Products
- Access Control
- Aiphone
- Ajax Systems
- Batteries
- Cable & Network Cabinets
- Delta UPS
- Fog Cannons
- FSH Electric Locks
- Hard Drives
- Monitors and Displays
- Network Hardware
- Nice - Gate Automation Control
- NX Witness
- Uniview
- Vivotek
- Vivotek Vortex
- Wireless Access Point
- 1/2.7",progressive scan,CMOS
- 25921944 resolution,30fps
- 2.7~13.5mm?AF automatic focusing and motorized zoom lens
- Ultra 265,H.265, H.264, MJPEG
- Built-in microphone & speaker
- Smart IR, up to 30m IR distance
- 2D/3D DNR, ROI
- Support 1/1 Alarm in/out,1 Serial port RS485
- DC12V, Wide voltage range of 25%,PoE
- Support WIFI
Optics
- Starlight illumination
- Day/night functionality
- Smart IR , up to 30 m (98 ft) IR distance
- Up to 120 dB Optical WDR(Wide Dynamic Range)
- Optical glass window with higher light transmittance
- IR anti-reflection window to increase the infrared transmittance
- 2D/3D DNR (Digital Noise Reduction)
Compression
- Ultra 265,H.265, H.264, MJPEG
- Built-in microphone & speaker
- Triple streams
- ROI (Region of Interest)
Network
- ONVIF Conformance
Structure
- Support PoE power supply
- Wide temperature range: -10C to 50C (14F to 122F)
- Wide voltage range of 25%
| IPC6415SR-X5UPW | |||||
| Camera | |||||
| Sensor | 1/2.7" progressive scan, 5.0 megapixel, CMOS | ||||
| Lens | 2.7~13.5mm?AFautomaticfocusingandmotorizedzoomlens | ||||
| DORI Distance | Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) |
| 2.7mm | 60.8 | 24.3 | 12.2 | 6.1 | |
| 13.5mm | 303.8 | 121.5 | 60.8 | 30.4 | |
| Angle of View (H) | 27.9~98.3 | ||||
| Angle of View (V) | 20.6~70.3 | ||||
| Angle of View (O) | 30.0~136.9 | ||||
| Shutter | Auto/Manual, shutter time: 1 s ~ 1/100000 s | ||||
| Minimum Illumination | Colour: 0.002 lux (F1.2,AGC ON) 0 lux with IR |
||||
| Iris | F1.2 | ||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| S/N | >55 dB | ||||
| IR Range | UP to 30m (98ft) | ||||
| WDR | 120dB | ||||
| Video | |||||
| Video Compression | Ultra 265,H.265, H.264, MJPEG | ||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | ||||
| Frame Rate | Main Stream:5M (2592*1944):Max. 30 fps; Sub Stream: 720P (1280720):Max. 30 fps; Third Stream: D1 (720576): Max. 30 fps |
||||
| BLC | Supported | ||||
| OSD | Up to 8 OSDs | ||||
| Privacy Mask | Up to 24 areas | ||||
| ROI | Up to 8 areas | ||||
| Motion Detection | Up to 4 areas | ||||
| Smart | |||||
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||
| Audio | |||||
| Audio Compression | G.711 | ||||
| Suppression | Supported | ||||
| Sampling Rate | 8 KHZ | ||||
| Storage | |||||
| Edge Storage | Micro SD, up to 256 GB | ||||
| Network Storage | ANR | ||||
| Network | |||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP , PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP , 802.1x , SNMP, SSL | ||||
| Compatible Integration | ONVIF(Profile S, Profile G), API | ||||
| Pan & Tilt | |||||
| Pan Range | 350 | ||||
| Pan Speed | 0.1/s ~ 60/s | ||||
| Preset speed: 60/s | |||||
| Tilt Range | 0 ~ 90 | ||||
| Tilt Speed | 0.1 ~ 50/s | ||||
| Preset speed: 50/s | |||||
| Number of Presets | 1024 | ||||
| Home Position | Supported | ||||
| Interface | |||||
| Alarm I/O | 1/1 | ||||
| Serial Port | 1 RS485 | ||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | ||||
| Built-in Mic | Supported | ||||
| Built-in Speaker | Supported | ||||
| WIFI | Supported | ||||
| General | |||||
| Power | DC 12V25%, PoE (IEEE802.3 at) | ||||
| Power consumption: Max 16W | |||||
| Dimensions ( x H) | ?129mm143mm(?5.07" x5.63") | ||||
| Weight | 0.75kg(1.65lb) | ||||
| Working Environment | 10C ~ +50C (14F ~ 122F), Humidity:?95% RH(non-condensing) | ||||
| Reset Button | Supported | ||||
