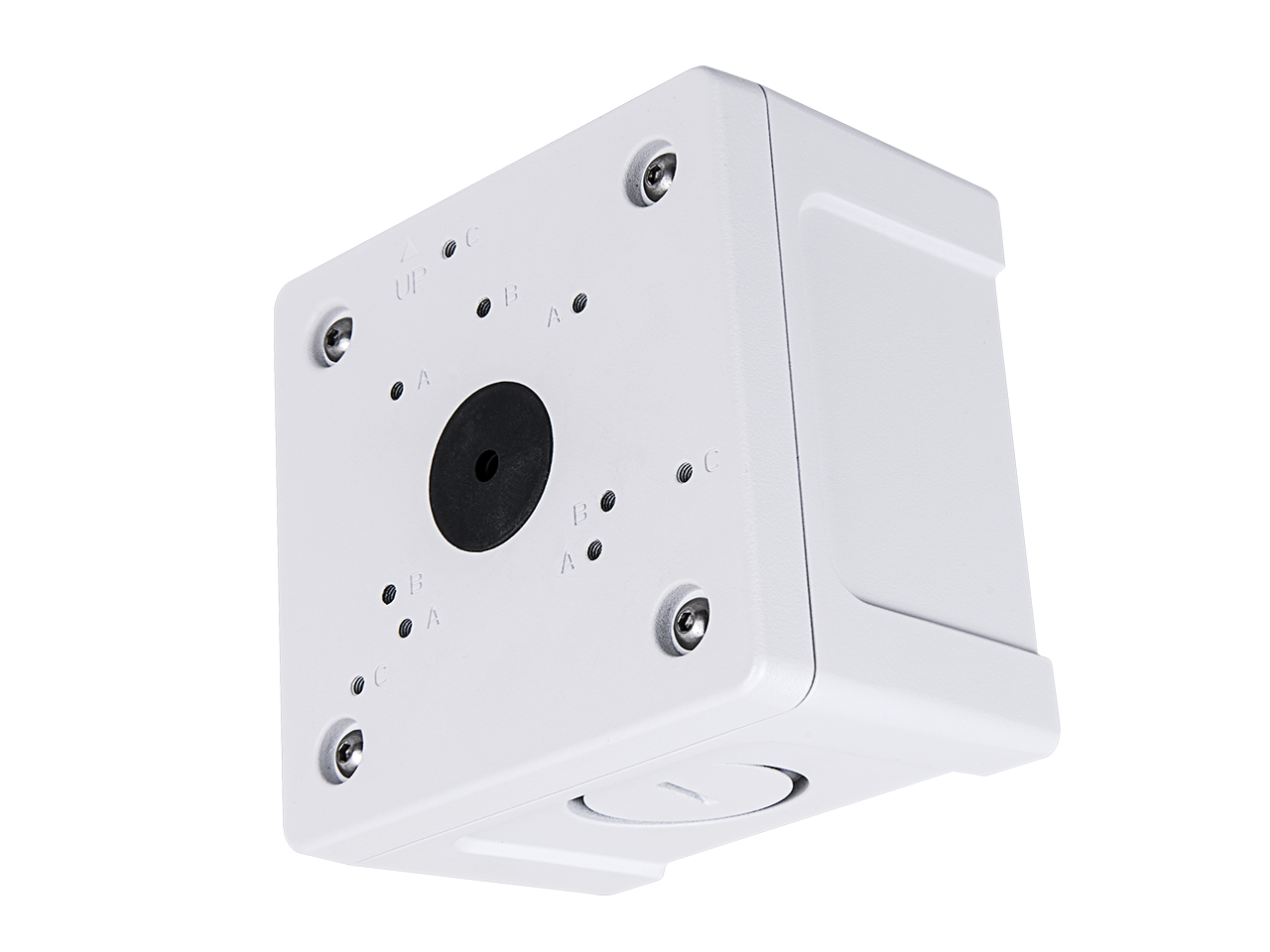

Outdoor Junction Box (IP66)

Supported Models:

FD9360-H, FD9380-H, IB9360-H, IB9368-HT, IB9380-H, IB9388-HT, IB9389-(E)H, IB9389-(E)HM, IB9389-(E)HT, IT9360-H, IT9380-H

Pole Mount Bracket: AM-312

Corner Mount Bracket: AM-412

P/N: 100220500G
Material: Aluminum Alloy
Color: White
Pipe Thread: PF 3/4”

Casing: IP66 (with supported cameras)
Dimensions: 122 (L) x 122 (W) x 76 (H) mm
Weight: 745 g
Box Dimension: 217 (L) x 174 (W) x 94 (H) mm (1pc)
Box Weight: 948 g
Carton Dimension: 490 (L) x 367 (W) x 252 (H) mm (10pcs)
Carton Weight: 10,396 g
Note: This product is recommended for general outdoor environments, excluding coastal areas with high salinity.
