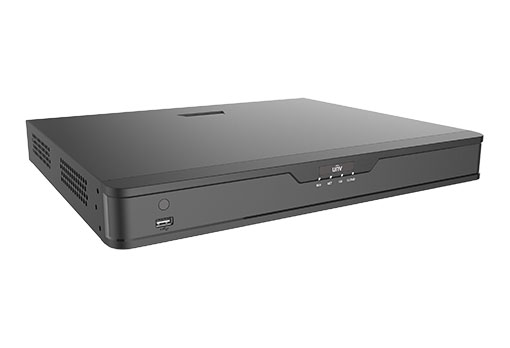

16 Channel Hybrid NVR Uniview (UNV)
Code: NVR302-16Q
- Sales
- New Products
- Access Control
- Aiphone
- Ajax Systems
- Batteries
- Bosch
- Cable & Network Cabinets
- Dahua
- Electronic Locks
- Fog Cannons
- Reeds & Sirens
- Gallagher
- Hard Drives
- Monitors and Displays
- Network Hardware
- NX Witness
- Secury360
- Uniview
- UPS / Power supplies
- Vivotek
- Vivotek Vortex
- Wireless Access Point
- Support H.265/H.264 video formats
- Support TVI,AHD, CVI,CVBS, IP cameras with adaptive access
- 16-channel BNC input
- Up to 8MP resolution for recording
- Support 1-ch HDMI output at up to 4K, 1-ch VGA output at up to 1920*1080
- Long transmission distance over coax cable
- Support TVI,AHD, CVI,CVBS, IP cameras with adaptive access
- 16-channel BNC input
- Up to 8MP resolution for recording
- Support 1-ch HDMI output at up to 4K, 1-ch VGA output at up to 1920*1080
- Long transmission distance over coax cable
| Model | NVR302-16Q |
| Video/Audio Input | |
| Analog Video Input | 16-ch, BNC |
| IP Video Input | 8-ch each channel up to 4K |
| Supported Analog Camera Types | Support AHD input:8MP@15fps(channel1-channel4) 5MP@20fps 4MP@30fps 3MP@30fps (channel1 -channel4) 1080P@30fps 720P@60fps Support TVI input:8MP@15fps(channel1-channel4) 5MP@20fps 4MP@30fps 3MP@20fps (channel1 - channel4) 1080P@30fps 720P@60fps Support CVI input:8MP@15fps(channel1-channel4) 4MP@30fps 1080P@30fps 720P@60fps Support CVBS input |
| Audio Input | 1-ch, RCA |
| Two-way Audio | 1-ch, RCA |
| Channel Associated Audio | 1-ch,RCA |
| Network | |
| Incoming Bandwidth | 72Mbps |
| Outgoing Bandwidth | 80Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE |
| Video/Audio Output | |
| CVBS Output | 1-ch, BNC |
| VGA Output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| HDMI Output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Recording Resolution | 8MP Lite/5MP Lite/4MP Lite /3MP/1080P/960P/720P/960H/4CIF/CIF |
| Audio Output | 1-ch, RCA |
| Synchronous Playback | 16-ch |
| Encoding | |
| Recording Frame Rate | Main stream: 8MP Lite@8fps?channel1-channel4? 5MP Lite@12fps 4MP Lite@15fps 3MP@15fps(channel1 - channel4) 2MP@15fps 720P@30fps Sub stream: D1@30fps(Max) |
| Recording Resolution | 8MP Lite/5MP Lite/4MP Lite /3MP/1080P/960P/720P/960H /4CIF/CIF |
| Hard Disk | |
| SATA | 2 SATA interface |
| Capacity | up to 10TB for each HDD |
| External Interface | |
| Network Interface | 1RJ45 10M/100M/1000M self-adaptive Ethernet Interface |
| USB Interface | Rear panel?1 x USB3.0,Front panel?1xUSB2.0 |
| Serial Interface | 1 x RS485 |
| Alarm In | - |
| Alarm Out | - |
| General | |
| Power Supply | 12V DC Power Consumption: ? 12 W( without HDD ) |
| Working Environment | -10C~+ 55C (+14F~+131F), Humidity ? 90% RH (non-condensing) |
| Dimensions(WDH) | 380mm 315mm 53mm (15" 12.4"2.1") |
| Weight ( without HDD ) | ?1.9 Kg ( 4.19lb ) |
