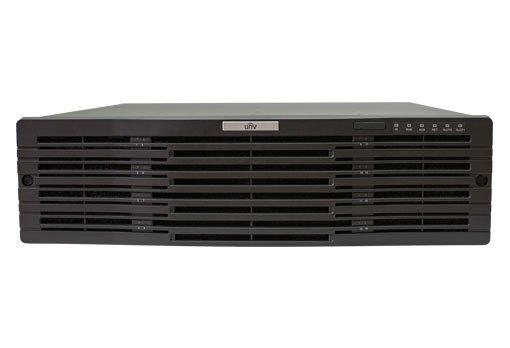

128 Channel 16 HDDs RAID NVR Uniview (UNV)

Code: NVR516-128

  • - Support Ultra 265/H.265/H.264 video formats
    - 128-channel input
    - Up to 12 Megapixels resolution recording
    - 16 SATA HDDs, Up to 10TB for each HDD
    - ANR technology to enhance the storage reliability when the network is disconnected
    - Support cloud upgrade

  • Support Ultra 265/H.265/H.264 video formats
  • 128-channel input
  • Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T
  • Support 2-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution
  • HDMI1, HDMI2 and VGA independent outputs provided
  • Up to 12 Megapixels resolution recording
  • Redundant power supply optional
  • 2 decoding cards optional, up to 12-ch HDMI
  • Support HDD hot swap with RAID 0, 1, 5, 6, 10 storage scheme configurable
  • 16 SATA HDDs, up to 10TB for each HDD
  • Support 2 miniSAS Interfaces
  • Support 12V power output
  • ANR technology to enhance the storage reliability when the network is disconnected
  • Support cloud upgrade

Model NVR516-128
Video/Audio Input
IP Video Input 128-ch
Two-way Audio Input 1-ch, BNC
Network
Incoming Bandwidth 512Mbps
Outgoing Bandwidth 384Mbps
Remote Users 128
Protocols P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
HDMI/VGA Output VGA:
1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
HDMI1?
4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
HDMI2:
4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
Recording Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output 1-ch, BNC
Synchronous Playback 16-ch
Corridor Mode Screen 3/4/5/7/9/10/12/16/32
Decoding
Decoding format Ultra 265, H.265, H.264
Live view/Playback 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability 4 x 12MP@20, 4 x 4K@30, 16 x 1080p@30, 36 x 720p@30, 64 x D1
Hard Disk
SATA 16 SATA interfaces
Capacity up to 10TB for each HDD
eSATA 1 eSATA interface
miniSAS 2 miniSAS ports
Disk Array
Array Type RAID 0/1/5/6/10/50/60
External Interface
Network Interface 4 RJ-45 10M/100M/1000M adaptive Ethernet Interface
2 1000M SFP Ethernet Interface
Serial Interface 1 x RS232, 1 x RS485
USB Interface Rear panel: 4 x USB3.0
Alarm In 24-ch
Alarm Out 8-ch
Decoding Card (optional) 2 slots (4-ch HDMI or 6-ch HDMI outputs per card)
Power Output 12V
General
Power Supply 100 ~ 240V AC
Power Consumption: ? 50 W( without HDD )
Working Environment -10C ~ + 55C ( +14F ~ +131F ), Humidity ? 90% RH(non-condensing)
Chassis 19-inch rack-mounted 3U chassis
Dimensions 482mm 477mm 131mm (18.8" 19.0" 5.1")
Weight ( without HDD ) ? 10 Kg ( 22.05 lb )
