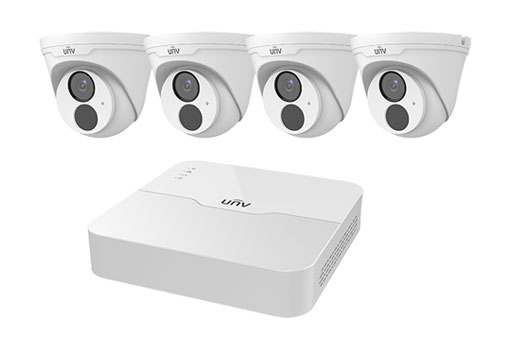

301-08LB-P8 with x4 3612LR3-PF28-D Uniview (UNV)
Code: KIT/301-08LB-P8/4*3612LR3-PF28-D
- Sales
- New Products
- Access Control
- Aiphone
- Ajax Systems
- Batteries
- Cable & Network Cabinets
- Delta UPS
- Fog Cannons
- FSH Electric Locks
- Hard Drives
- Monitors and Displays
- Network Hardware
- Nice - Gate Automation Control
- NX Witness
- Uniview
- Vivotek
- Vivotek Vortex
- Wireless Access Point
x1 301-08LB-P8 NVR
x4 IPC3612LR3-PF28-D 2MP Cameras
x1 HDD (please select above for size)
301-08LB-P8
- Support Ultra 265/H.265/H.264 video formats
- 8-channel input
- Plug & Play with 8 independent PoE network interfaces
- Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
- Support 1-ch HDMI, 1-ch VGA
- HDMI and VGA simultaneous output
- Up to 2MP resolution recording
- 1 SATA HDD, up to 6 TB
- Support cloud upgrade
IPC3612LR3-PF28-D
- Day/night functionality
- Smart IR, up to 30 m (98 ft) IR distance
- D DNR (Digital Noise Reduction)
- Ultra 265,H.265,H.264,MJPEG
- ROI (Region of Interest)
- ONVIF Conformance
- Wide temperature range: -30C to 60C (-22F to 140F)
- Wide voltage range of 25%
- IP67
| Model | NVR301-08LB-P8 | |||||||||
| Video/Audio Input | ||||||||||
| IP Video Input | 8-ch | |||||||||
| Network | ||||||||||
| Incoming Bandwidth | 40Mbps | |||||||||
| Outgoing Bandwidth | 40Mbps | |||||||||
| Remote Users | 128 | |||||||||
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE | |||||||||
| Video/Audio Output | ||||||||||
| HDMI/VGA Output | HDMI: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz |
|||||||||
| Recording Resolution | 1080p/960p/720p/D1/2CIF/CIF | |||||||||
| Synchronous Playback | 8-ch | |||||||||
| Corridor Mode Screen | 3/4/5/7/9 | |||||||||
| Decoding | ||||||||||
| Decoding format | Ultra 265/H.265/H.264 | |||||||||
| Liveview/ Playback |
1080p/960p/720p/D1/2CIF/CIF | |||||||||
| Capability | 4 x 1080p@20, 4 x 720p@30 | |||||||||
| Hard Disk | ||||||||||
| SATA | 1 SATA interface | |||||||||
| Capacity | up to 10TB for each disk | |||||||||
| External Interface | ||||||||||
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface | |||||||||
| USB Interface | Rear panel?2 x USB2.0 | |||||||||
| PoE | ||||||||||
| Interface | 8 independent 100 Mbps PoE network interfaces | |||||||||
| Max Power | Max 30W for single port | |||||||||
| Supported Standard | IEEE 802.3at, IEEE 802.3af | |||||||||
| General | ||||||||||
| Power Supply | 48~52V DC Power Consumption: ?5.5 W( without HDD ) |
|||||||||
| Working Environment | -10C ~ + 55C ( +14F ~ +131F ), Humidity ? 90% RH(non-condensing) | |||||||||
| Dimensions(WDH) | 270mm 205mm 42mm(10.6"8.1"1.7") | |||||||||
| Weight ( without HDD ) | 0.7kg ( 1.54lb ) | |||||||||
| Model | IPC3612LR3-PF28-D | |||||||||
| Sensor | 1/2.7", 2megapixel, progressive scan, CMOS | |||||||||
| Lens | 2.8mm@F2.0 | |||||||||
| DORI Distance | Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) | |||||
| 2.8mm | 46.7 | 18.7 | 9.3 | 4.7 | ||||||
| Angle of view(H) | 86.5 | 112.7 | ||||||||
| Angle of View (V) | 44.1 | 60.1 | ||||||||
| Angle of View (O) | 106.4 | 146.5 | ||||||||
| Shutter | Auto/Manual, 1/6~1/100000 s | |||||||||
| Adjustment angle | Pan: 0~360 | Tilt: 0~90 | Rotate: 0~360 | |||||||
| Min. Illumination | Colour: 0.02 Lux (F2.0, AGC ON) 0 Lux with IR |
|||||||||
| IR Range | Up to 30m (98 ft) IR range | |||||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||||
| S/N | >52dB | |||||||||
| WDR | Supported | |||||||||
| Noise Reduction | 2D/3D | |||||||||
| Video | ||||||||||
| Max. Resolution | 19201080 | |||||||||
| Video Compression | Ultra 265,H.265,H.264,MJPEG | |||||||||
| Frame Rate | Main Stream:1080P (1920*1080): Max. 25 fps; Sub Stream: 720P(1280*720): Max. 25 fps; Third Stream: CIF (352*288): Max. 25fps |
|||||||||
| OSD | Up to 4 OSDs | |||||||||
| Privacy Mask | Up to 8 areas | |||||||||
| ROI | Up to 2 areas | |||||||||
| Motion Detection | Up to 4 areas | |||||||||
| Network | ||||||||||
| Protocols | IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP,RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP,SNMP,SSL | |||||||||
| Compatible Integration | ONVIF(Profile S),API | |||||||||
| Interface | ||||||||||
| Network | 10/100M Base-TX Ethernet | |||||||||
| General | ||||||||||
| Power | 12 V DC25%, PoE (IEEE802.3 af) | |||||||||
| Power consumption: Max 5.5W | ||||||||||
| Dimensions ( x H) | ?118x 96 mm (?4.6" x 3.8") | |||||||||
| Weight | 0.2kg (0.44lb) | |||||||||
| Working Environment | -30C ~ +60C (-22F ~ 140F), Humidity :10%~90% RH(non-condensing) | |||||||||
| Ingress Protection | IP67 | |||||||||
