4+4MP 25x 4G AOV TiOC Network PTZ Camera plus Integrated Solar System (with battery)

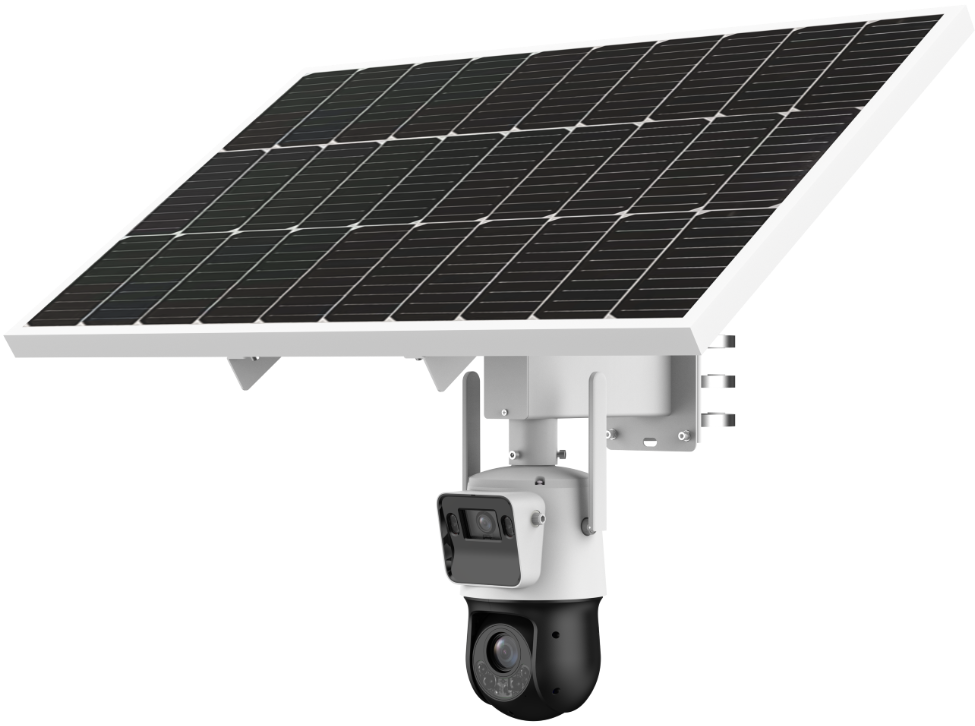

The Dahua DH-SDT4E425-4F-MB-AGQ-PV1-EAU and DH-PFE221-LP1240CP-M100 are designed to work together as a 100W off-grid, solar-powered security kit. This combination is specifically engineered to provide continuous 24/7 surveillance in remote sites without electrical grid access or Wi-Fi coverage, such as farms, orchards, and construction yards

DH-SDT4E425-4F-MB-AGQ-PV1-EAU: 4+4MP 4G AOV TiOC PTZ Camera

• • Overview channel: 1/1.8" CMOS 4Megapixel F1.0 CMOS,
• • Detail channel: 1/2.8" CMOS 4Megapixel CMOS
• • 25× optical zoom Max.
• • 25/30 fps@4M
• • 100m IR & 100m warm light.
• • WizColor Technology AOV Mode
• • Xinghan Large-Scale AI Models
• • WizTracking
• • ANPR
• • 4G
• • Built-in dual mics and a speaker

DH-PFE221-LP1240CP-M100: Integrated 100W Solar Power System

• Integrated Unified Design: Consolidates the bracket mount, battery box, and solar panels into a single modular framework. This eliminates complex cabling and permits rapid, single-person installation in about 20–30 minutes.
• High-Capacity Lithium Storage: Features a 12.8 VDC, 40 Ah (512 Wh) Lithium Iron Phosphate (LiFePO4) battery unit. It delivers a life span of up to 2,000 cycles at ?80% residual capacity.
• Monocrystalline Silicon Solar Panel: Includes a 100 Wp panel with a cells conversion efficiency rating of ?17%, outputting 18.40 VDC at 5.64 A.
• Intelligent Thermal Self-Heating: Outfitted with automatic thermal control sensors. An internal heating element initiates if internal temperatures hit 0 °C and shuts off at 5 °C to preserve structural cell health and continue power generation during frost cycles.
• Comprehensive Operations & Maintenance (O&M): Collects ongoing battery health analytics, operating states, and data telemetry. Status parameters are easily cross-checked via specialized remote clients or through three dedicated real-time chassis indicator LEDs (Solar, Battery, and Load)

DATASHEET - DH-SDT4E425-4F-MB-AGQ-PV1-EAU
