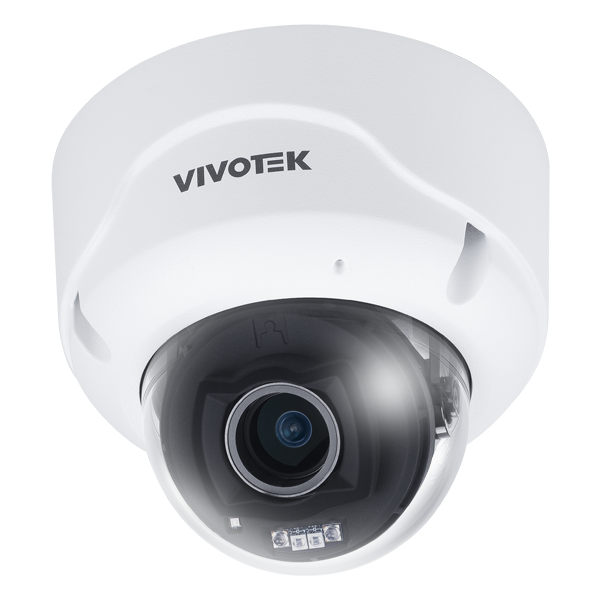

5-Megapixel AI outdoor dome camera featuring a 2.8–12mm motorized zoom lens and 40-metre night vision.

5-Megapixel AI-powered outdoor dome network camera. The "(L)" suffix explicitly designates a generally available hardware variant featuring 1 GB of RAM and 4 GB of eMMC storage, distinguishing it from the standard limited-quantity V3 model which carries 2 GB of RAM and 8 GB of eMMC

Core Specifications

• Resolution & Performance: Captures 2560 x 1920 (5MP) video at 30 frames per second using a 1/2.8" progressive scan CMOS sensor.
• Lens System: Equipped with a 2.8–12 mm motorized vari-focal lens with remote focus and a P-iris aperture (F1.6 ~ F3.3).
• Field of View (FoV): Offers a horizontal coverage range of 95.4° to 28.7° and a vertical range of 68.8° to 21.5°.
• Night Vision: Includes built-in Smart IR illuminators effective up to 40 metres (131 feet).
• Storage & Power: Features an onboard microSD/SDHC/SDXC slot supporting up to 1 TB cards, and utilizes Power over Ethernet (PoE) for single-cable deployment

Key Features & Intelligence

• AI & Analytics: Integrated with AI-powered Smart Motion Detection and Smart VCA (Video Content Analytics) for object and attribute tracking.
• Image Optimization: Features WDR Pro technology for high-contrast environments and Vivotek's RealSight Engine to minimize motion blur.
• Cybersecurity: Enhanced hardware-level security including Signed Firmware, Secure Boot, and a TPM 2.0 (Trusted Platform Module) chip.
• Audio & Peripherals: Supports two-way audio via a built-in microphone and includes alarm I/O expansion capabilities.

DATASHEET - FD9389-EHTV-V3 (L)
