Black - Wired AI-powered security IP camera with a 110° viewing angle, hybrid illumination, True WDR, microphone, and PoE/12 V. For outdoor and indoor use.

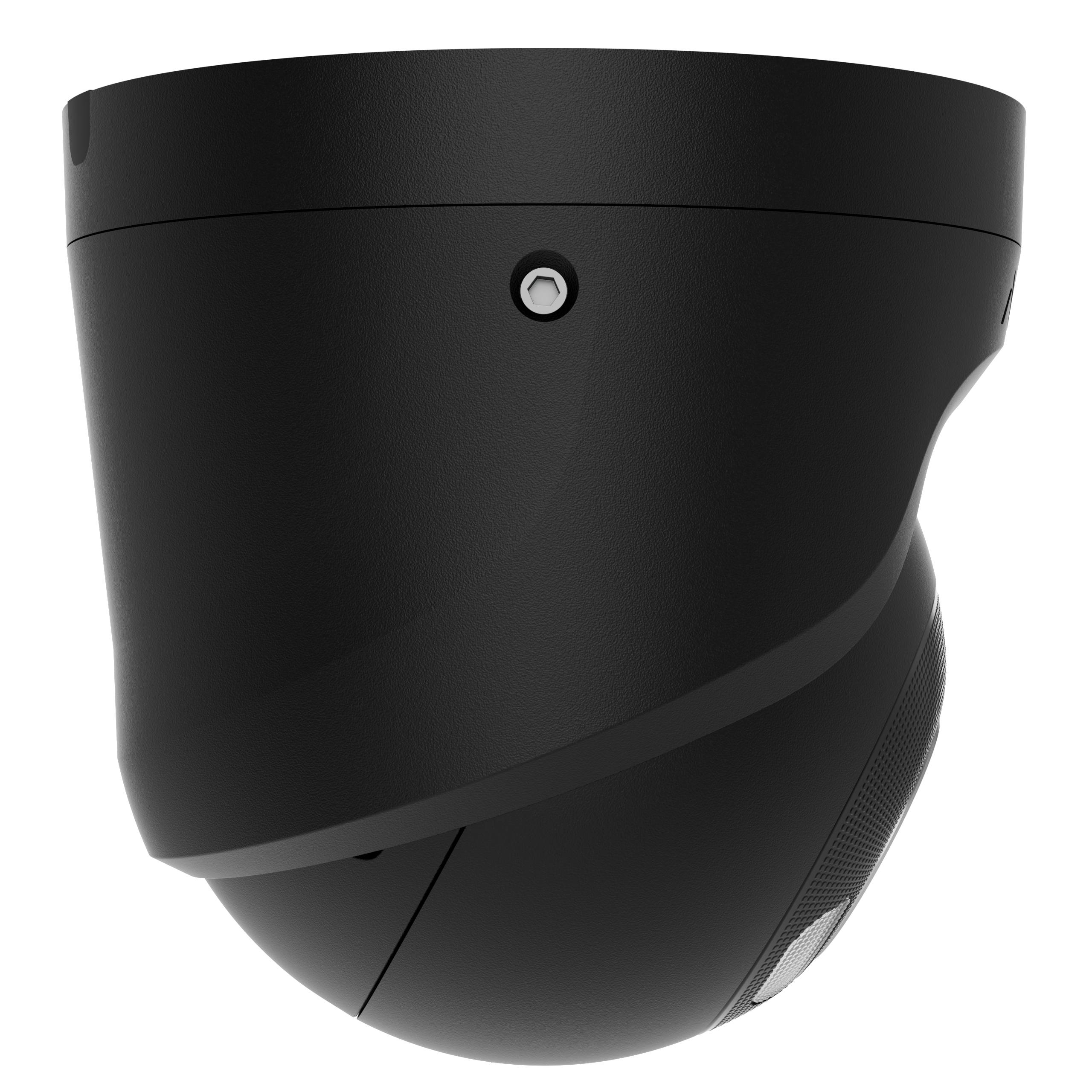

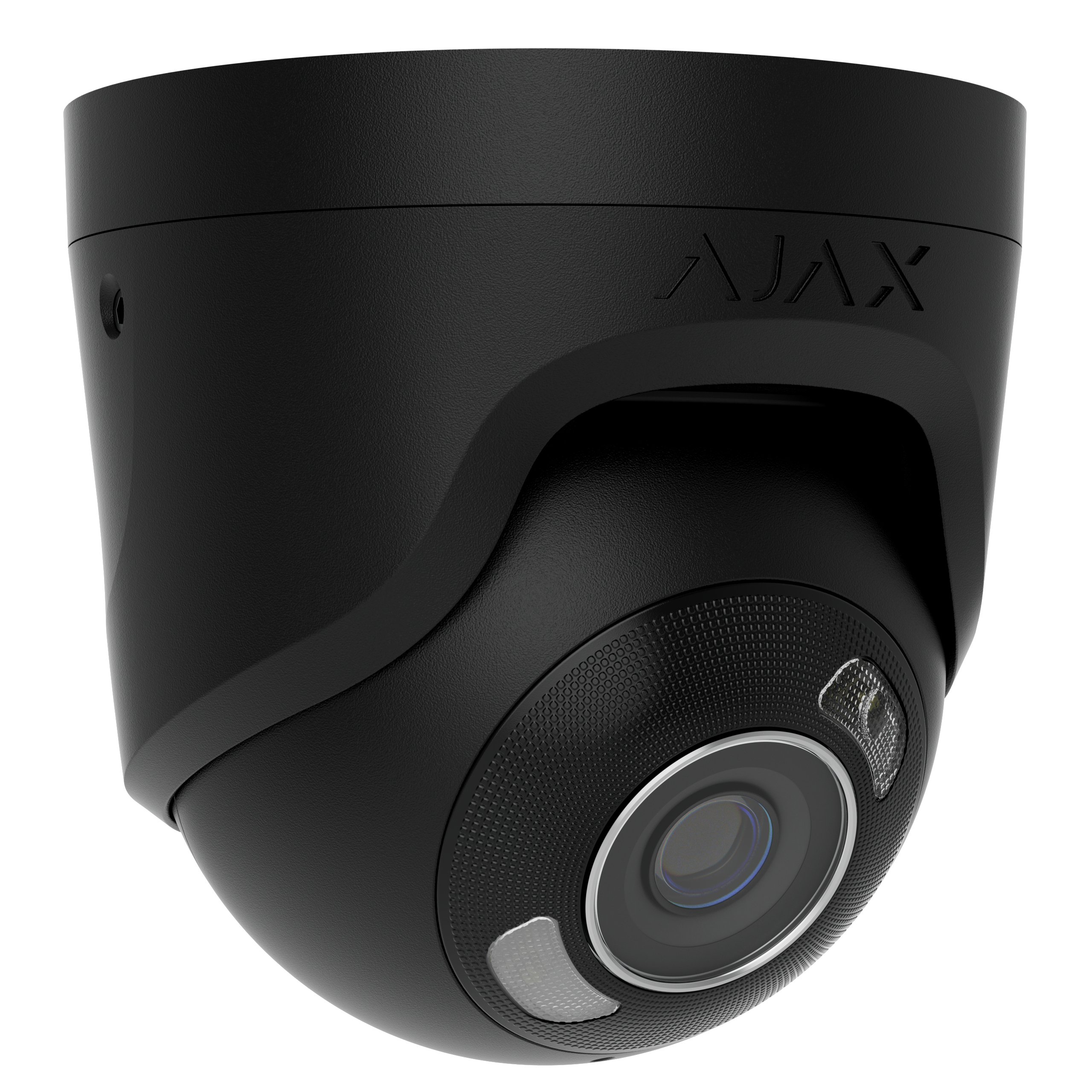

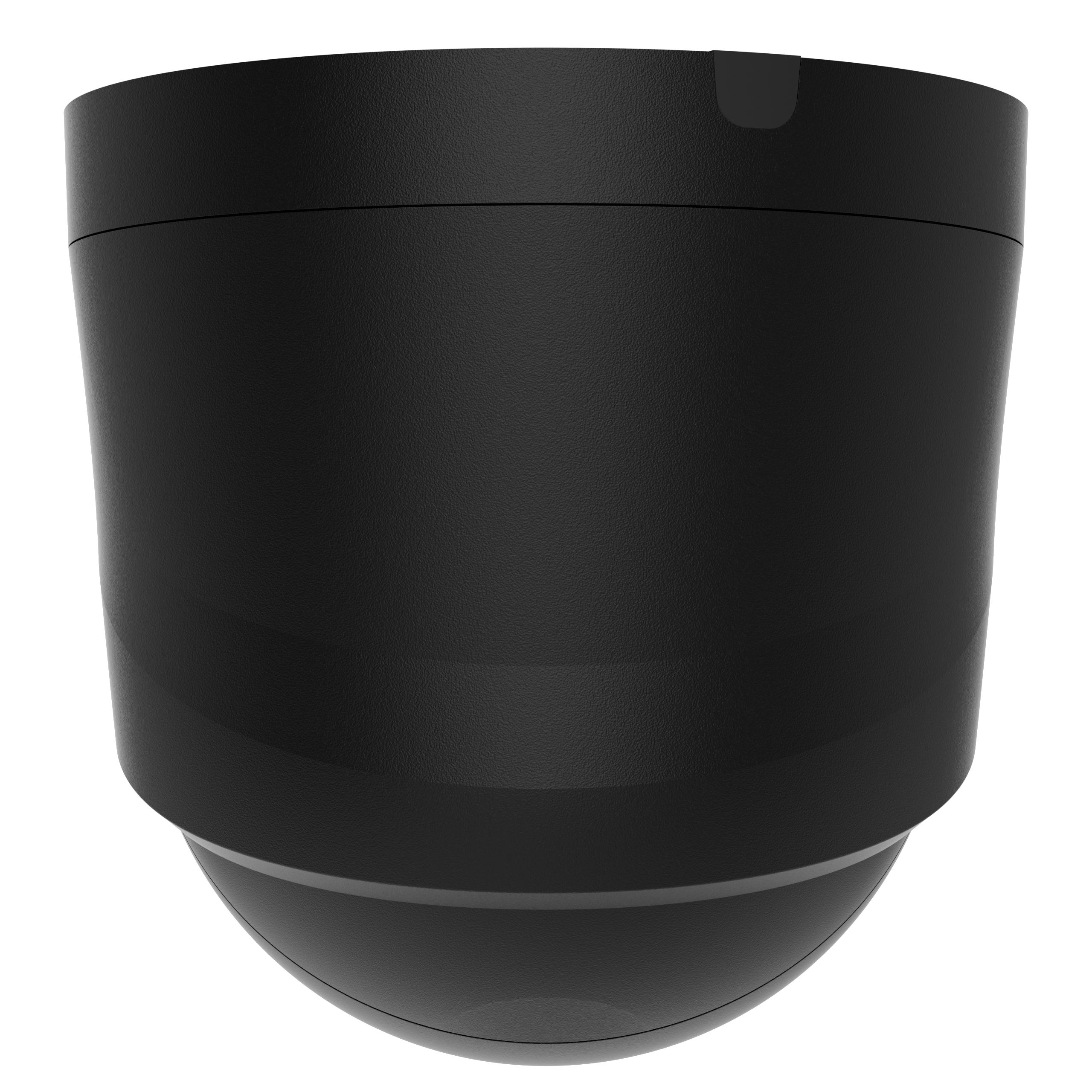

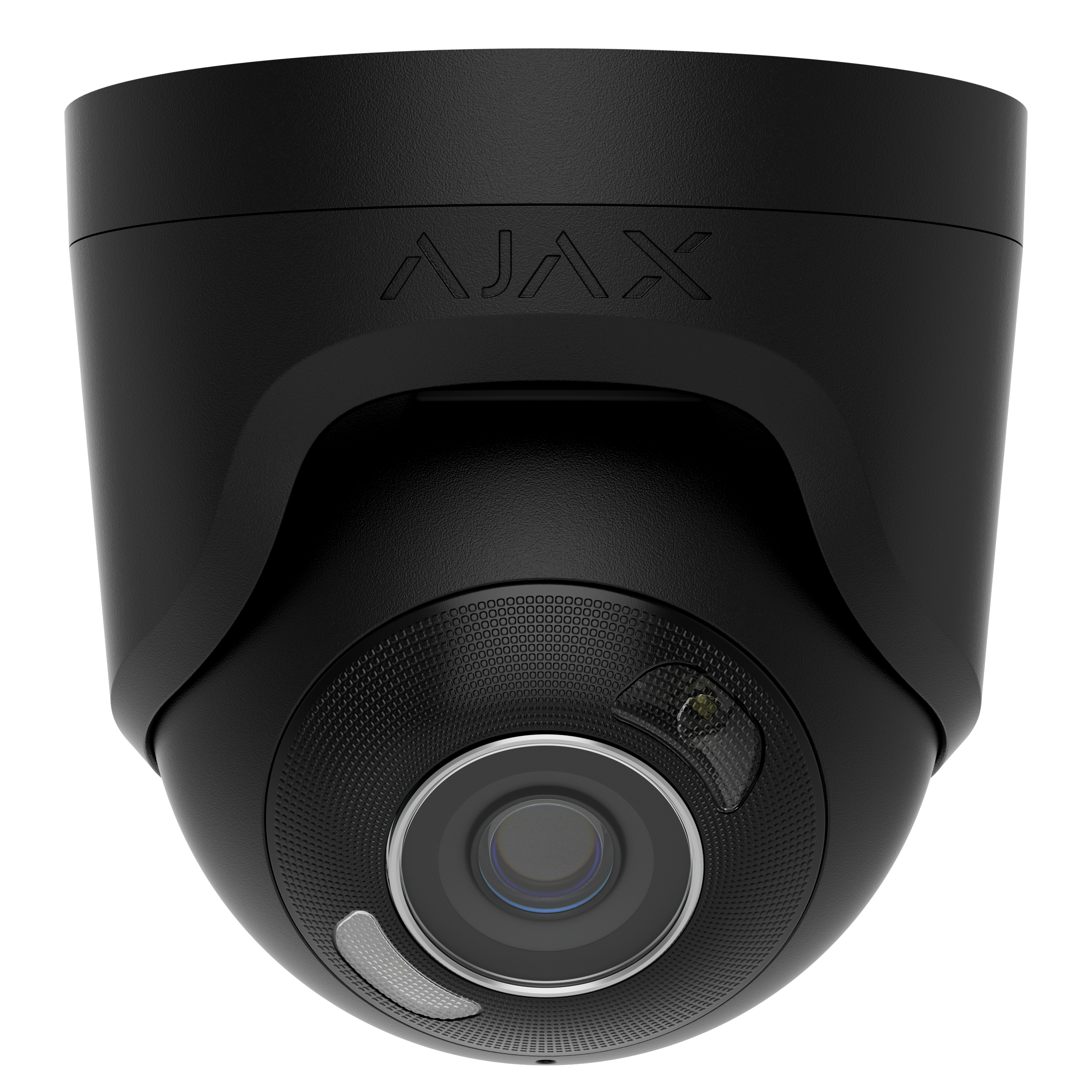

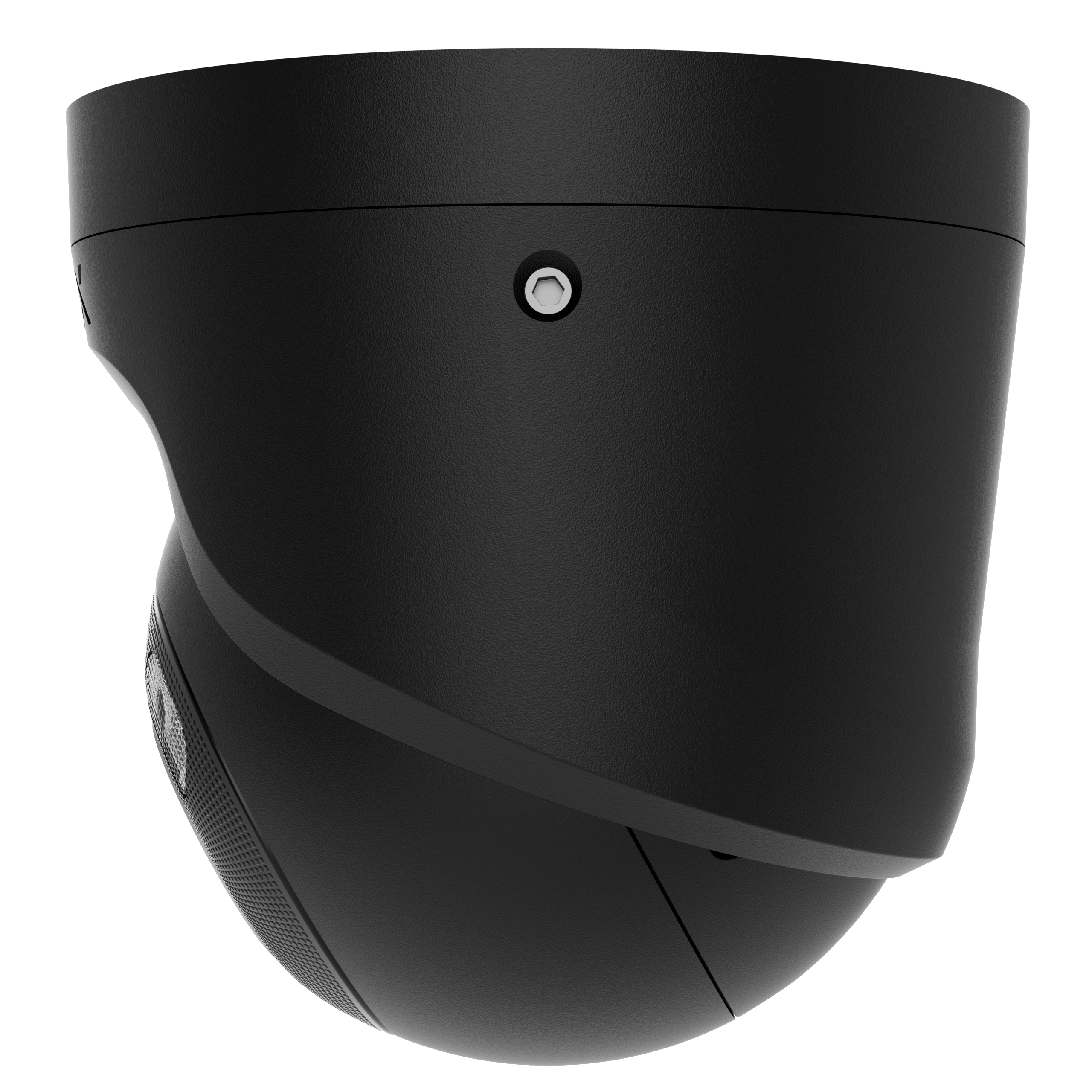

The Ajax TurretCam HL (5 Mp/2.8 mm) is a high-performance, professional-tier wired IP security camera designed for both indoor and outdoor surveillance. It belongs to Ajax Systems' Baseline video lineup, combining high-resolution imaging with edge AI analytics and robust hardware.

Image sensor: 5 MP CMOS, 1/2.8" type

Lens focal length: 2.8 mm

Maximum aperture: f/1.6

Lens iris type: fixed

Lens focal type: fixed

Field of view:

• horizontal: 100–110°
• vertical: 50–60°
• diagonal: 125–135°

DORI distance:

• Detection: 65 m
• Observation: 26 m
• Recognition: 13 m
• Identification: 6.5 m

Maximum illumination distance:

• white LED: up to 50 m
• IR LED: up to 50 m

Intelligent lighting control automatically adjusts the intensity of IR and white LEDs in real time to prevent overexposure. This ensures clear visibility of objects at varying distances — whether close to or far from the camera — in low-light conditions.

Minimum illumination:

• colour: 0.005 lx
• B/W: 0 lx

Signal-to-noise ratio (SNR): more than 52 dB

DATASHEET - 126260 TurretCam HL (5 Mp/2.8 mm)
