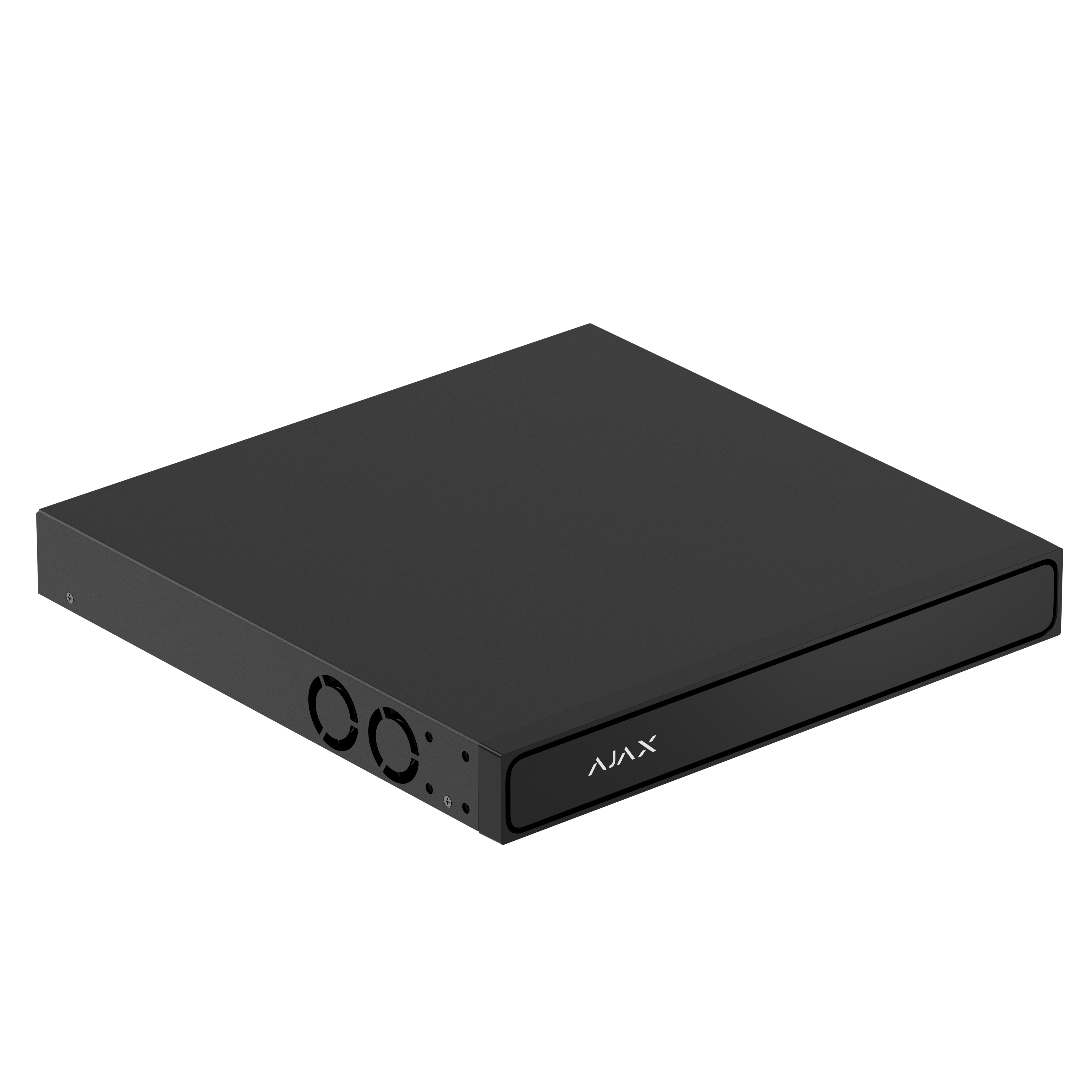

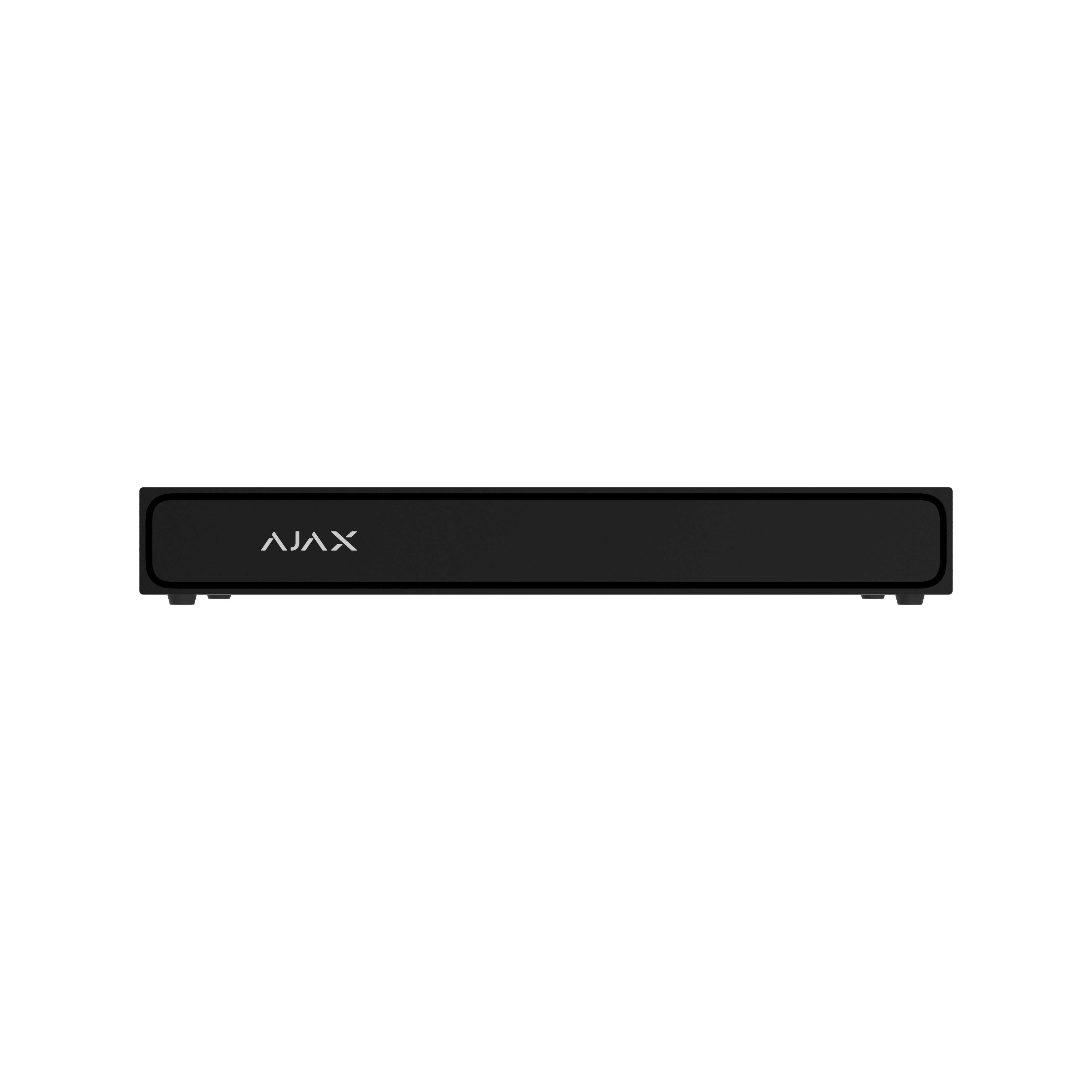

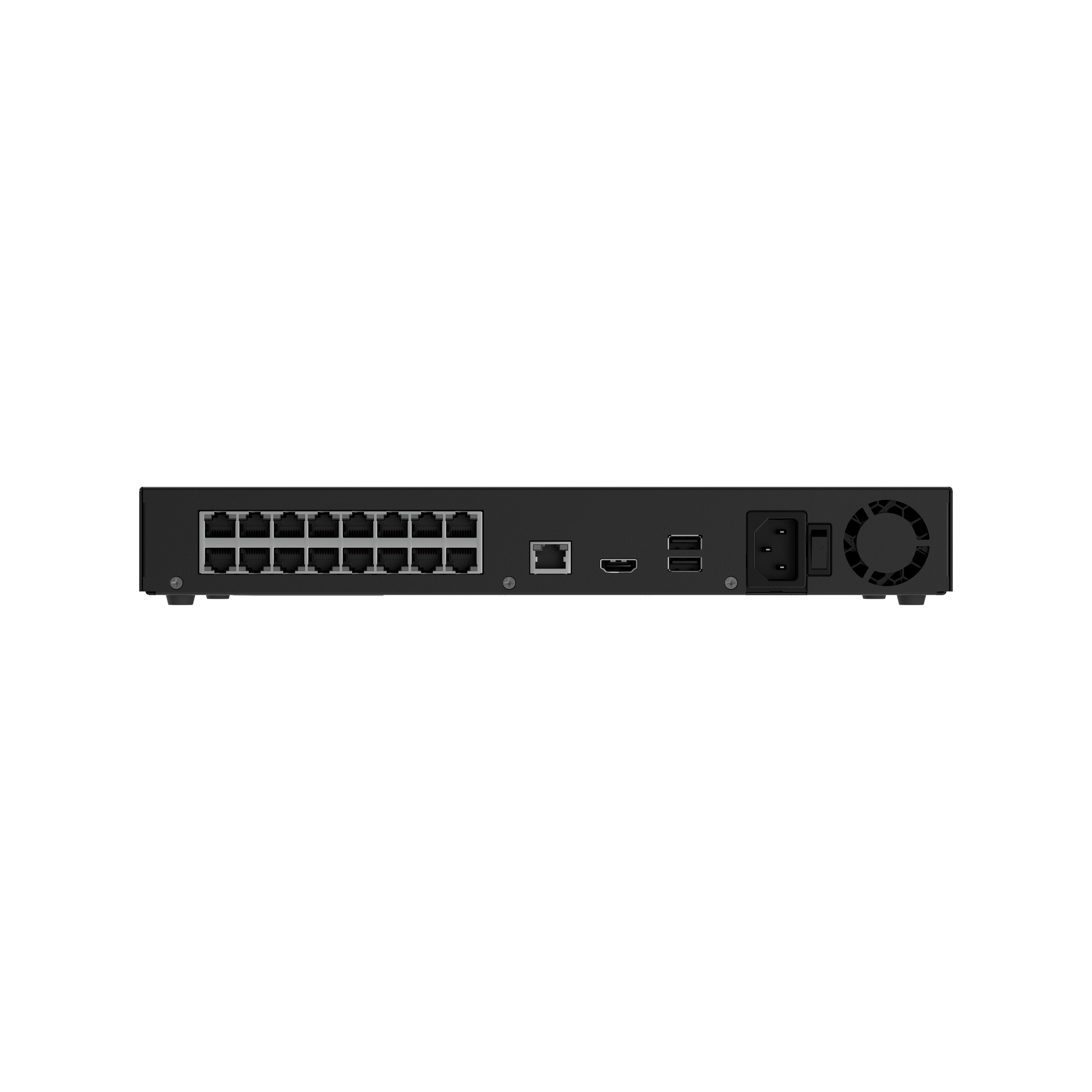

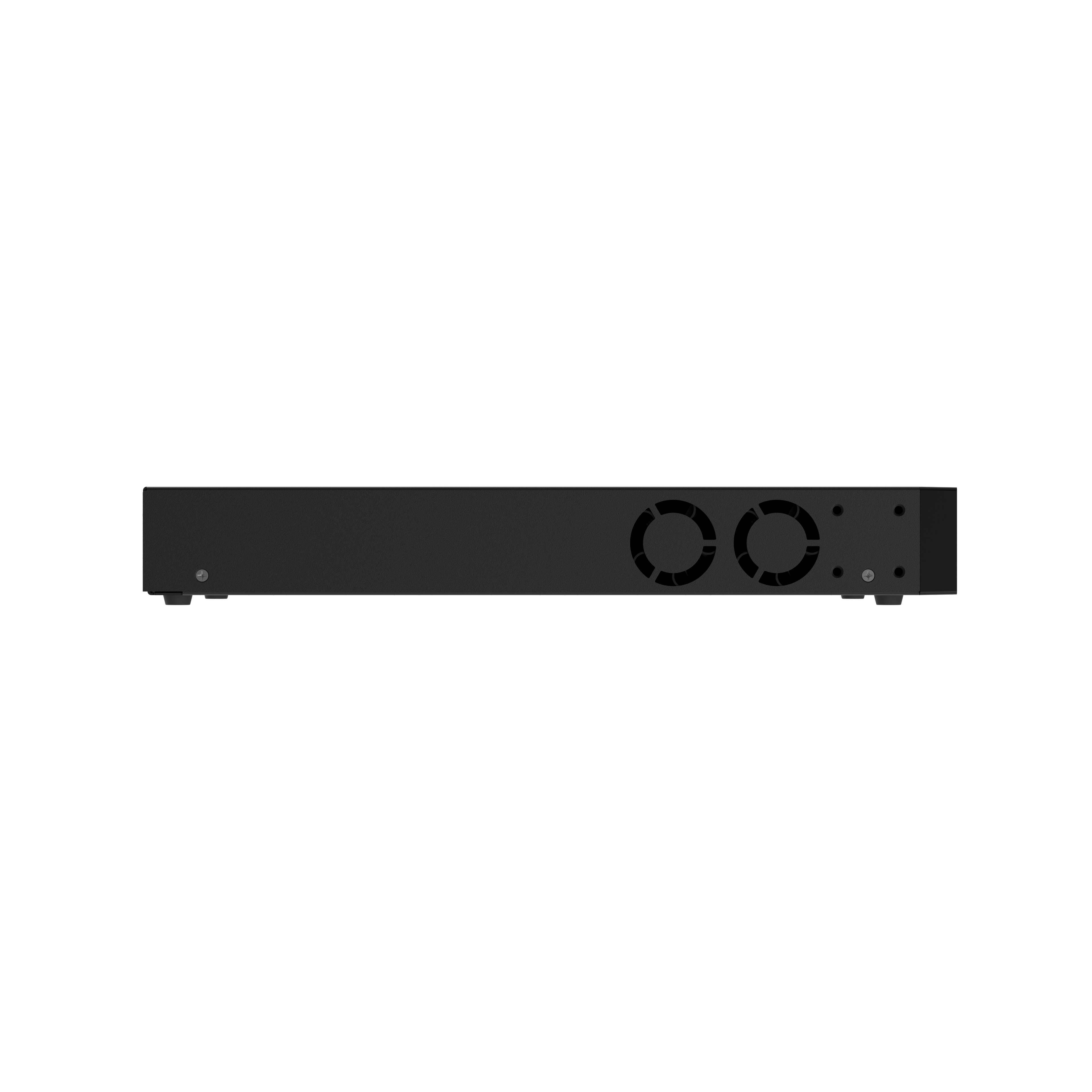

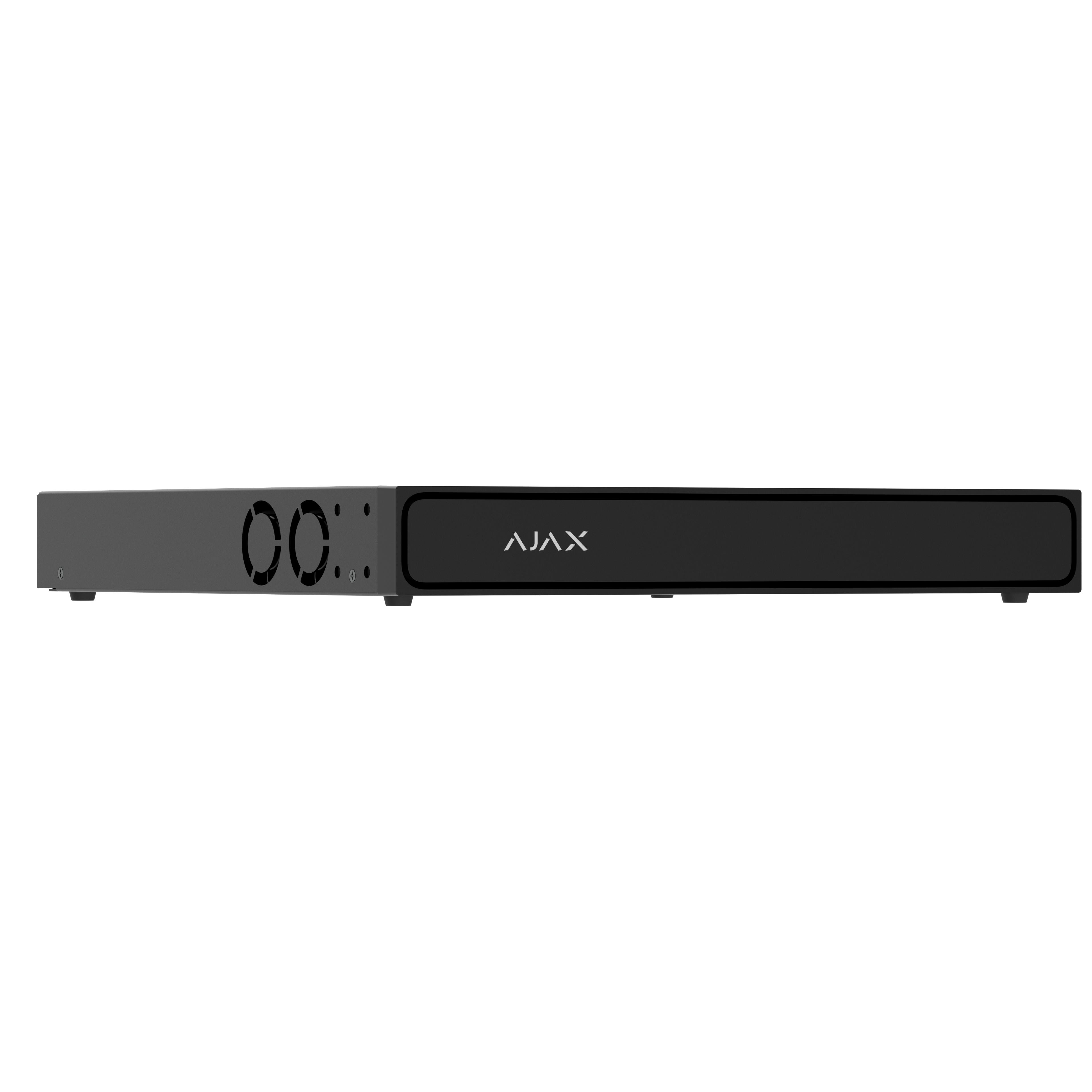

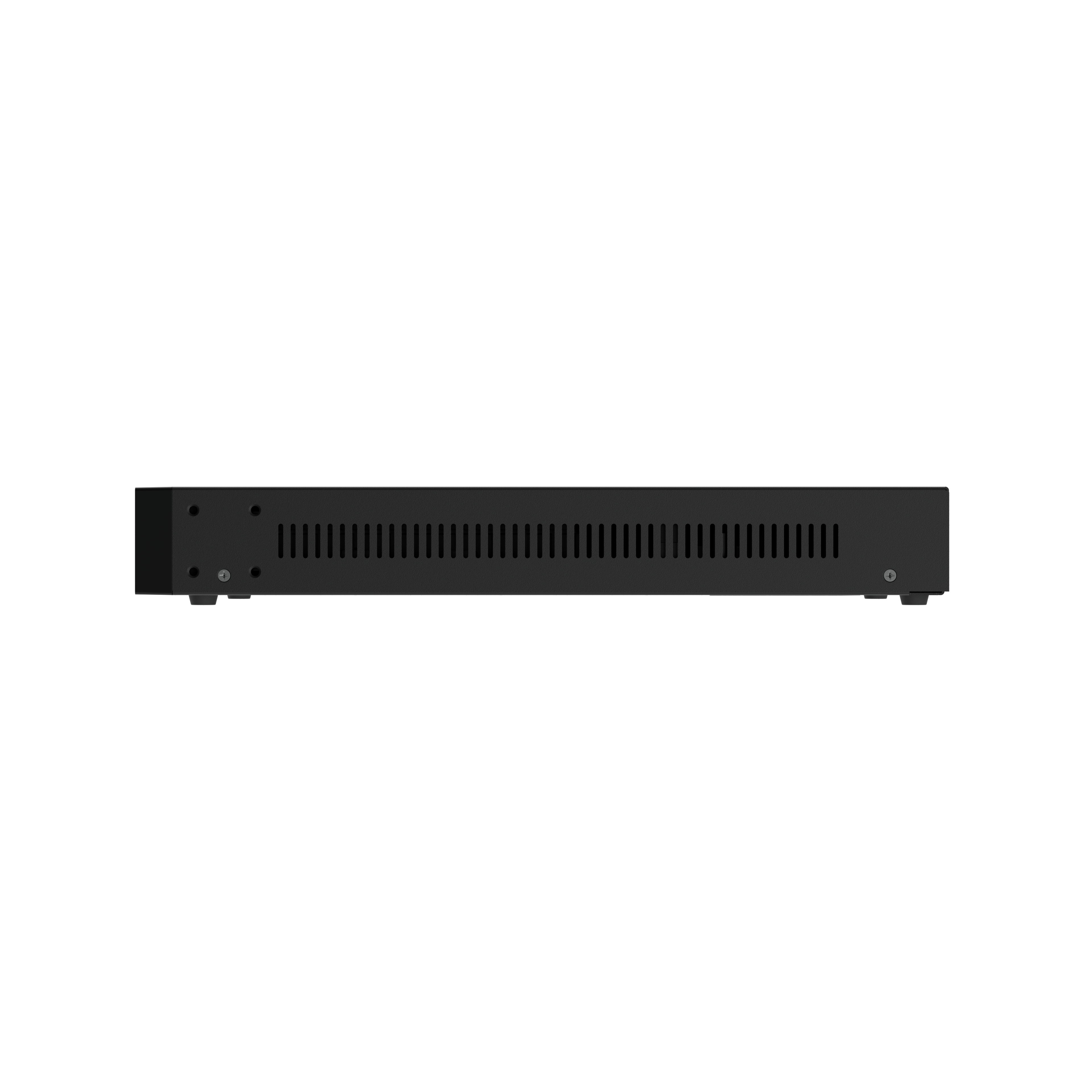

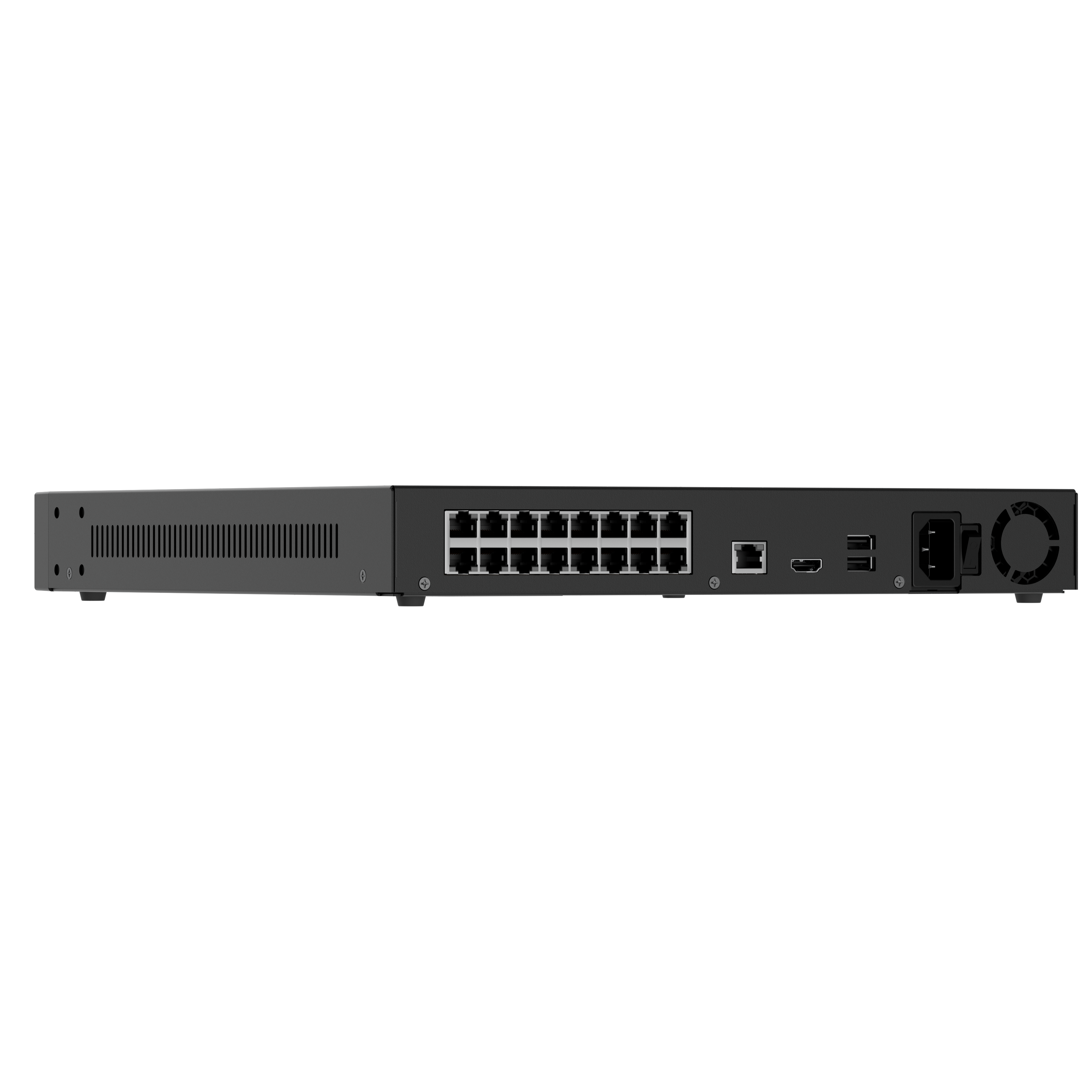

16-channel network video recorder with 4K HDMI output, 16 PoE ports, and support for 2 hot-swappable HDDs in Black

Ajax network video recorders integrate Ajax video devices and third-party IP cameras into a single ecosystem. NVR H2D series recorders support two hot-swappable HDDs - ideal for facilities that require a deeper archive and reliable data backup. Equipped with PoE ports, the NVRs can directly connect and power up to 16 IP cameras. The system adapts to specific monitoring needs: video can be managed remotely via Ajax apps or on-site with the built-in VMS

• Video Input: 16 channels.
• Recording Resolutions: Up to 12 MP (including 8 MP/4K, 5 MP, 3 MP, 1080p, and 720p).
• Video Decoding Formats: H.265, H.264, and Ajax Jet Sparrow.
• Network Bandwidth: Up to 160 Mbps incoming and 160 Mbps outgoing.
• Storage Interface: 2 × SATA III bays supporting hot-swap 2.5" and 3.5" HDDs or SSDs (up to 16 TB per drive, drives not included).
• Local Output: 1 × 4K HDMI local monitor output.
• USB Ports: 2 × USB 2.0 on the rear panel.

DATASHEET - 160731 NVR H2D16PAC (16-ch)
