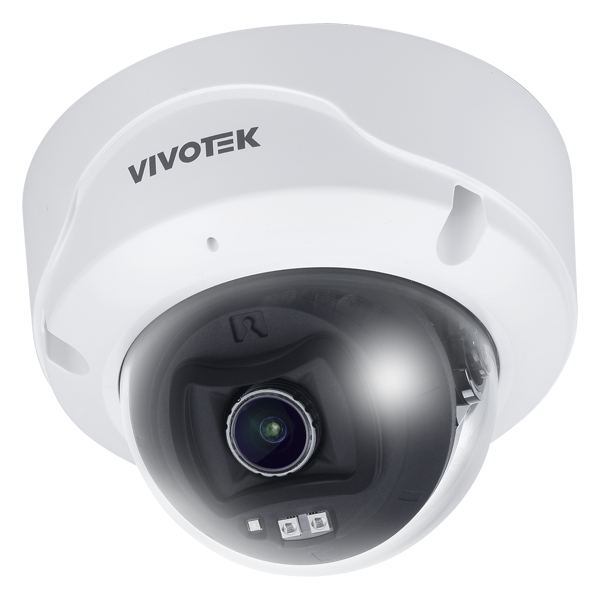

5MP Indoor Dome Camera

The Vivotek FD9189-H-V3 Network Surveillance Camera is a professional 5-megapixel indoor fixed dome IP security camera featuring built-in AI analytics, an HDMI live-streaming output, and advanced cyber security protocols.

• Image Sensor: 1/2.8" Progressive CMOS
• Max. Resolution: 2560x1920 (5MP)
• Lens Type: Fixed-focal
• Focal Length: f = 2.8 mm
• Aperture: F2.0
• Iris Type: Fixed iris
• Field of View: 103.4° (Horizontal) 75.3° (Vertical) 135.2° (Diagonal)
• Shutter Time: 1/5 sec. to 1/32,000 sec.
• WDR Technology: WDR Pro
• Day/Night: Yes
• Removable IR-cut filter: Yes
• Illuminators: Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*2
• Minimum Illumination: 0.055 lux @ F2.0 (Color) 0.005 lux @ F2.0 (B/W) 0 lux with IR illumination on
• Pan Range: 350°
• Tilt Range: 80°
• Rotation Range: 350°
• Pan/Tilt/Zoom Functionalities: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
• Storage: Seamless Recording to MicroSD/SDHC/SDXC card (1TB capacity supported) and recording to network-attached storage (NAS)
• Built-in Installation Aids: Pixel calculator

DATASHEET - FD9189-H-V3
