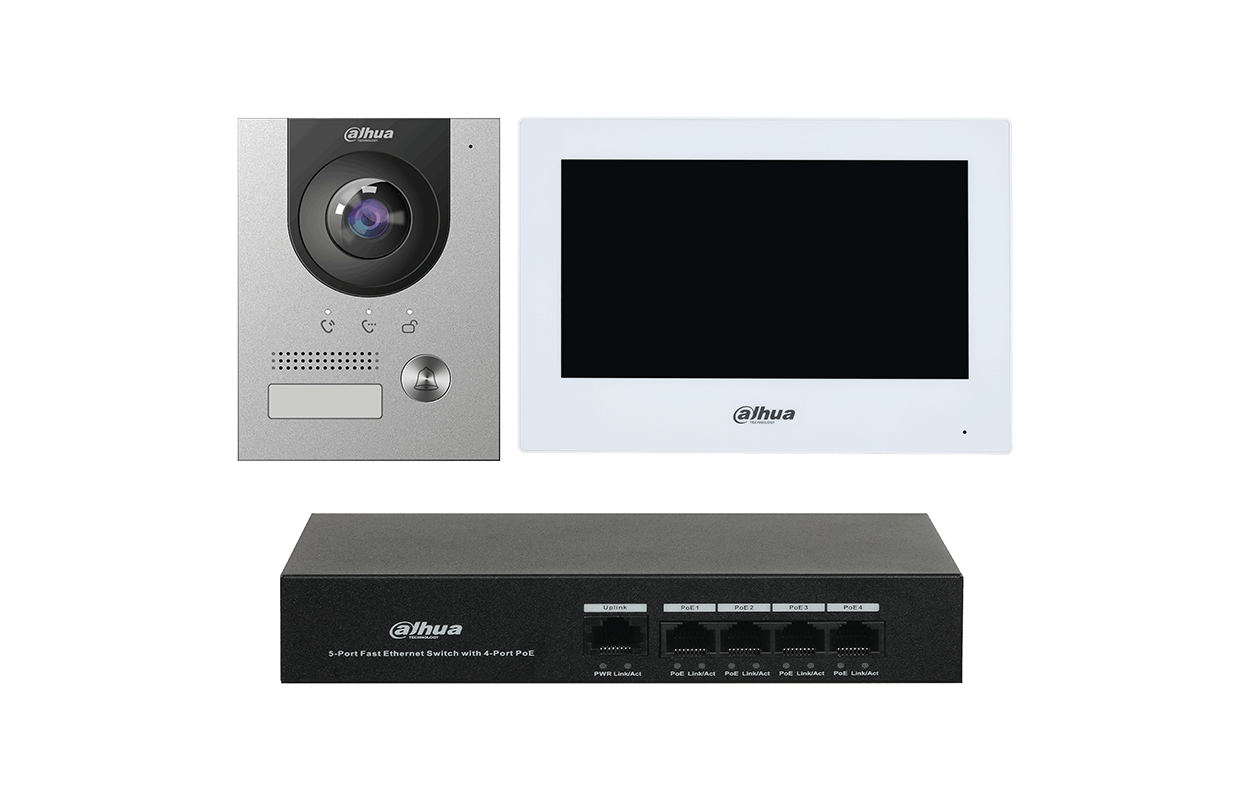

IP Villa Outdoor Station & Indoor Monitor Surface Intercom Kit

IP Villa Outdoor Station & Indoor Monitor

Previous model was the DHI-KTP01L(S)
This S2 version has an updated internal PCB due to a component supply change.

IP Villa Door Station:

• Anodized aluminum front panel.
• CMOS low illumination 2MP HD colorful 168.6°camera.
• Video intercom function.
• Provides 12 VDC, 600 mA power.
• Mobile phone app, talk to the visitor or unlock the door remotely on your phone.
• IK07 and IP65 rated (silicone sealant is required for the shell, see the quick start guide).
• Support H.265 and H.264.
• Standard PoE power supply (if the VTO device with 12 V power output needs to charge the load, it should be connected to a PSE switch that complies with the 802.3.at standard).

IP Indoor Monitor:

• 7" TFT Capacitive touchscreen, 1024 × 600.
• IPC surveillance.
• Alarm integration.
• High performance and cost-effective.
• Supports 8 GB SD card.
• Supports standard PoE.

DATASHEET - DHI-KTP01L(S)-S2
