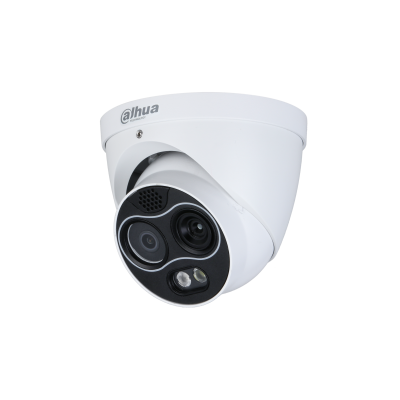

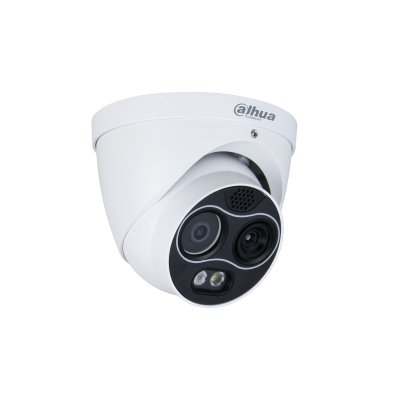

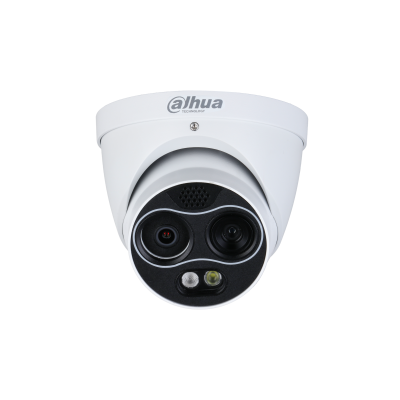

Dahua 4MP Thermal Mini Hybrid Eyeball Network Camera White

The DHI-TPC-DF1241-TB2F2-DW-S8-V1 is an advanced hybrid thermal network turret camera. It combines a 256×192 pixel uncooled VOx thermal sensor with a 4-megapixel visible-light CMOS sensor, designed for 24/7 perimeter protection, early fire detection, and active active-deterrence audio-visual warnings.

The main enhancements of the V1 (DHI-TPC-DF1241-TB2F2-DW-S8-V1) series compared to the DHI-TPC-DF1241-TB2F2-DW-S8 include:

• TIOC functionality with red and blue warning lights
• Built-in speaker and dual microphones for two-way talk
• Upgraded visible-light sensor
• White light and audio alarm support

· Vanadium oxide uncooled focal plane detector.

· 1/1.8" 4Megapixel progressive scan CMOS.

· AI functions: heat (fire) detection, tripwire, human/vehicle classification, smoking detection, call detection, and smoke detection.

· Temperature measurement range of –20 °C to +650 °C.

· Local audio, white light alarm prompts, red and blue light alarm prompts.

· Dual image fusion (visible and thermal channels).

· Built-in dual microphones.

· Wide input voltage12 (±20%)–24 VDC; PoE (802.3af).

· IP67 rated.

· Ultra low false alarm with Xinghan Large-Scale AI Mode

DATASHEET - DHI-TPC-DF1241-TB2F2-DW-S8-V1
