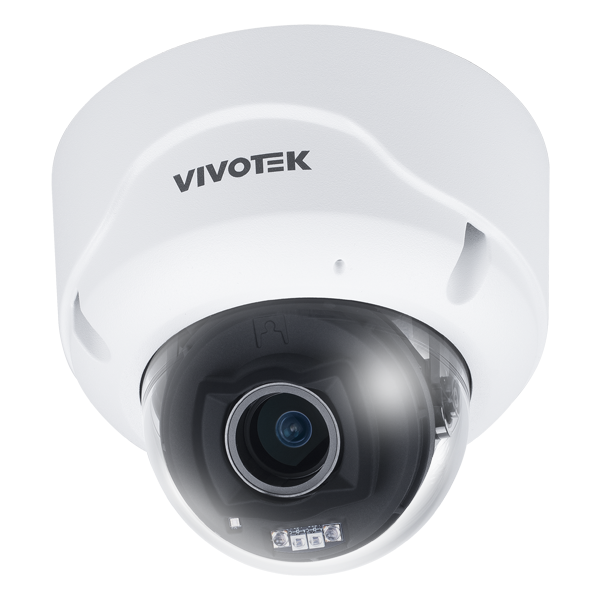

5MP Outdoor Dome Camera

• AI-powered Smart Motion Detection and Smart VCA
• RealSight Engine for unparalleled visibility
• Built-in IRs up to 40M
• IP66/IK10/NEMA 4X Protection
• Signed Firmware, Secure Boot, TPM 2.0

• Image Sensor: 1/2.8" Progressive CMOS
• Max. Resolution: 2560x1920 (5MP)
• Lens Type: Motorized, Vari-focal, Remote Focus
• Focal Length: f = 2.8~12 mm
• Aperture: F1.6 ~ F3.3
• Iris Type: P-iris
• Field of View: 95.4° ~ 28.7° (Horizontal) 68.8° ~ 21.5° (Vertical) 129.6° ~ 35.9°(Diagonal)
• Shutter Time: 1/5 sec. to 1/32,000 sec.
• WDR Technology: WDR Pro
• Day/Night: Yes
• Removable IR-cut filter: Yes
• Illuminators: Built-in IR illuminators, effective up to 40 meters with Smart IR, IR LED*4
• Minimum Illumination: 0.04 lux @ F1.6 (Color) 0.005 lux @ F1.6 (B/W) 0 lux with IR illumination on
• Pan Range: 350°
• Tilt Range: 80°
• Rotation Range: 350°
• Pan/Tilt/Zoom Functionalities: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
• Storage: Seamless Recording to MicroSD/SDHC/SDXC card (1TB capacity supported) and recording to network-attached storage (NAS)
• Built-in Installation Aids: Remote focus, remote zoom, pixel calculator

DATASHEET - FD9389-EHTV-v3
