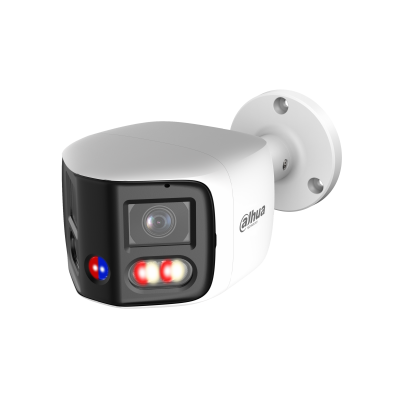

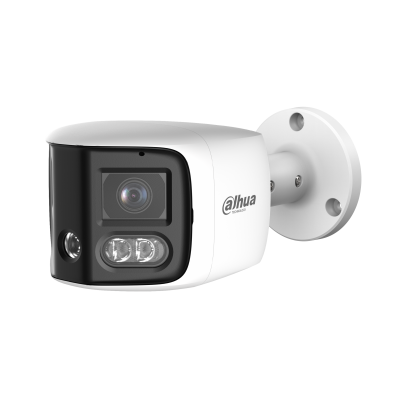

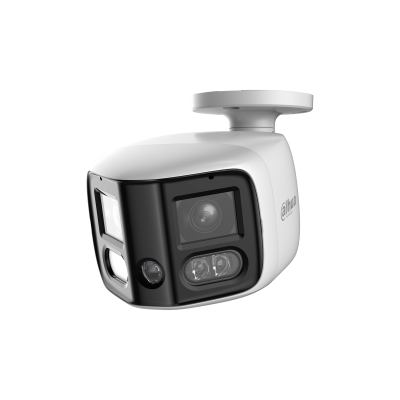

2x4MP TiOC Duo Splicing Fixed-focal Eyeball WizSense Network Camera

• 1/2.7" CMOS image sensor, high definition image.

• Outputs max 8 MP (4320 × 1944)@20 fps.

• H.265 codec, high compression rate, ultra-low bit rate.

• Built-in multi-core light, the max IR distance is 30 m and the max warm light distance is 30 m.

• ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.

• WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.

• Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay detection, loitering detection, face detection (full image).

• Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.

• Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max 512 GB Micro SD card; built-in dual Mic; 1-ch speaker; supports two-way talk.

• 12 VDC/PoE power supply.

• IP67 protection.

• Sound and light alarm (red and blue lights).

• SMD 4.0.

• Supports one-tap arming and disarming.

• SMD area can be set in warm light areas that support triggering alarms.

• EPTZ: Enlarge and track the targets of intelligent alarms.

DATASHEET - DH-IPC-PFW3859S-A180-AS-PV-ANZ-S2
