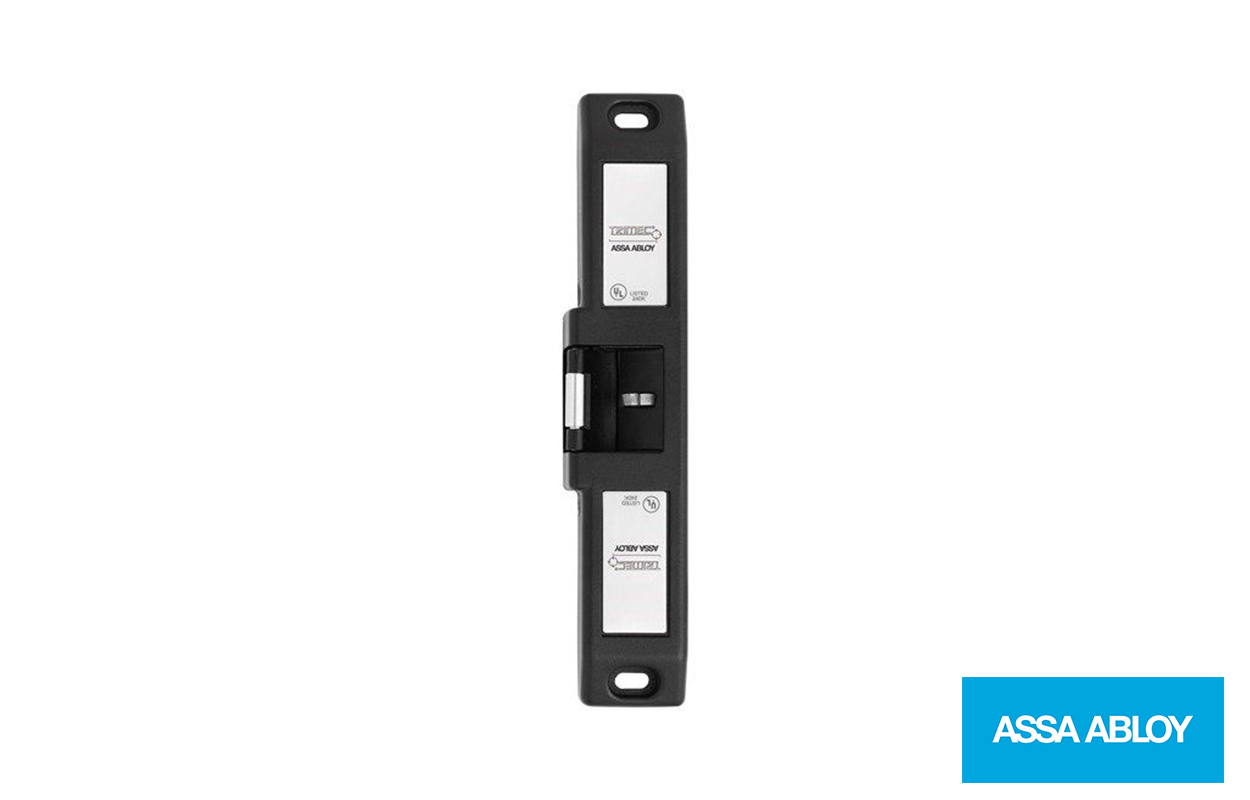

Trimec Electric Strike Monitored ES2601 12 VDC-Panic Bar Strike Lock

The un-monitored ES260 and monitored ES2600 rim strikes are high security products manufactured from solid stainless steel and designed to be used with existing and new crash bars fitted to Emergency Exit doors.

When used in conjunction with a standard access control system, these strikes convert inch exit-only doors with inch pullman type inch latches into full entry and exit doors, allowing authorised access from the security side.

Ideal for use in hospitals and any areas where, in the event of a fire, staff may need to return back through the fire door to assist others. General Product Features

• Preset to power to lock/power to open field changeable on site
• High security tamper resistant to all known techniques
• Extra security with 3 hardened locking pins
• Easier installation with body depth only 27mm
• Cast stainless steel body
• Low current consumption with a max 175a at 12 volts dc
• Solenoid rated for continuous use.
• Flexible cable exit is interchangeable rear and side
• Easy to use installation template

LT112601 SPEC SHEET
